TPS659162RGZR - Texas Instruments

Description: TPS65916 Power Management Unit (PMU) for Processor

Download TPS659162RGZR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

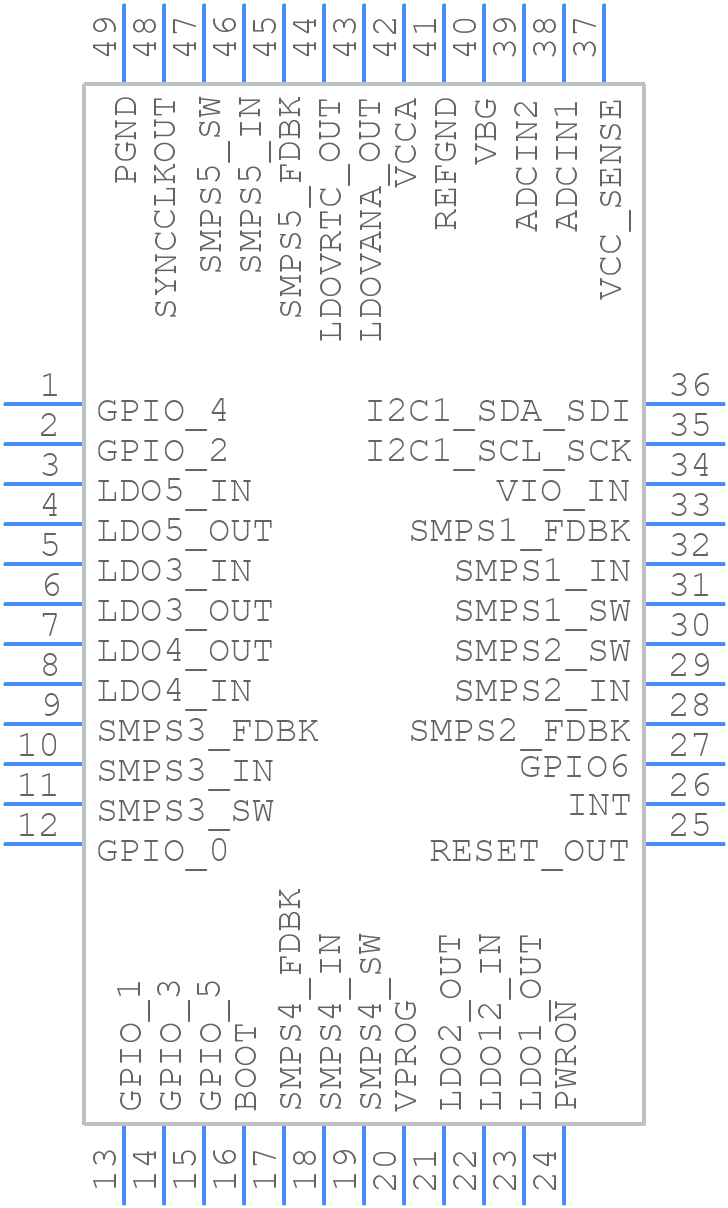

TPS659162RGZR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS659162RGZR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048D
click to zoom
3D Models
TPS659162RGZR - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ0048D
click to zoom

TPS659162RGZR Details

  • Manufacturer Part Number:

    TPS659162RGZR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-07-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    5.25 V

  • Input Voltage-Min:

    3.135 V

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    10

  • Number of Functions:

    1

  • Number of Outputs:

    10

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    7 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    0.7 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.8 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    2700 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

TPS659162RGZR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and placement guide in the TPS659162RGZR Evaluation Module User's Guide (SLUUAC5). It's essential to follow this guide to ensure proper thermal performance, reduce noise, and minimize electromagnetic interference (EMI).
  • The TPS659162RGZR is a highly configurable device. Texas Instruments provides a Power Management Unit (PMU) Configuration Tool (SWT-PMT-CONFIG) that helps engineers configure the device for their specific application. The tool generates a configuration file that can be used to program the device.
  • The TPS659162RGZR can handle input voltages up to 5.5V. However, it's recommended to operate the device within the specified input voltage range of 3.5V to 5V for optimal performance and reliability.
  • The TPS659162RGZR has a specific power-up sequence that must be followed to ensure proper initialization. The device requires a power-on reset (POR) signal to be applied before the input voltage reaches the minimum operating voltage. The POR signal should be held low for at least 10ms to ensure a clean power-up sequence.
  • The TPS659162RGZR is a high-power device that requires proper thermal management. The device has a thermal pad that must be connected to a heat sink or a thermal plane on the PCB to dissipate heat. The recommended operating junction temperature is -40°C to 125°C.
