TPS659163RGZT - Texas Instruments

Description: Power Management Specialised - PMIC Power Management Unit (PMU) for Processor 48-VQFN -40 to 105

Download TPS659163RGZT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

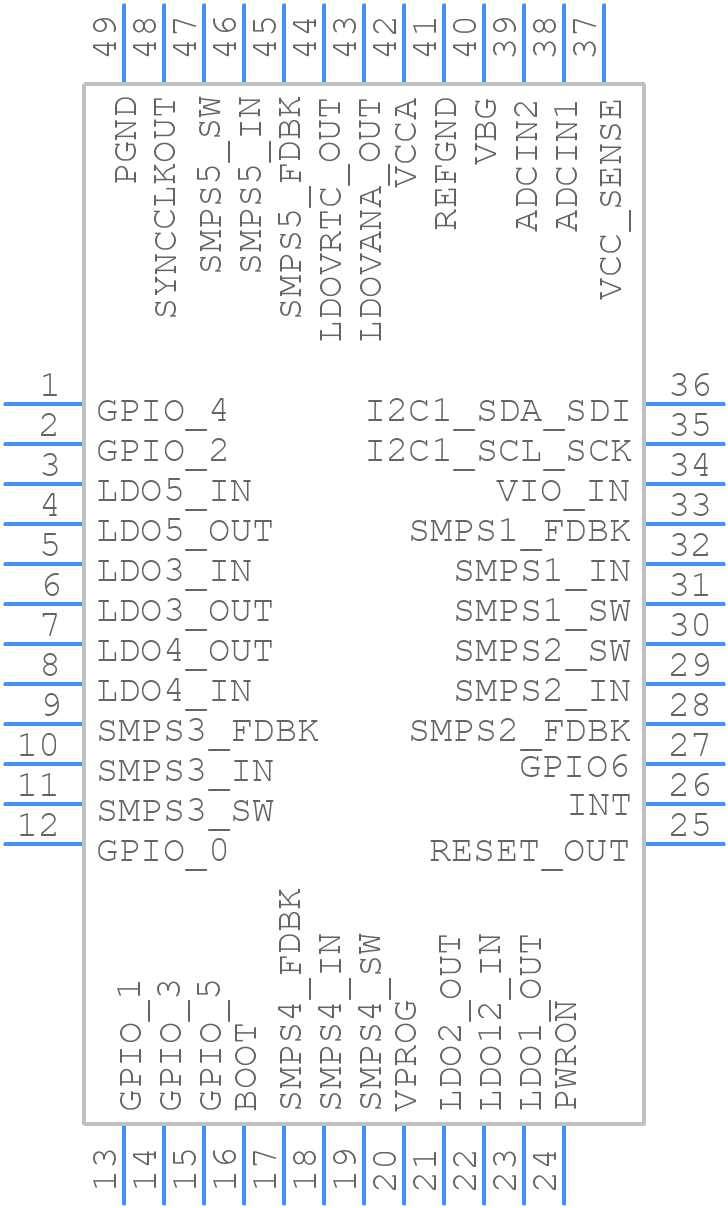

TPS659163RGZT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS659163RGZT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ (S-PVQFN-N48)-1-
click to zoom
3D Models
TPS659163RGZT - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ (S-PVQFN-N48)-1-
click to zoom

TPS659163RGZT Details

  • Manufacturer Part Number:

    TPS659163RGZT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-02-02

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    5.25 V

  • Input Voltage-Min:

    3.135 V

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    10

  • Number of Functions:

    1

  • Number of Outputs:

    10

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    7 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    0.7 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.8 V

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    2700 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

TPS659163RGZT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and placement guide in the TPS659163RGZT Evaluation Module User's Guide (SLUUAC6). It's essential to follow this guide to ensure proper thermal performance, noise reduction, and signal integrity.
  • Texas Instruments offers the WEBENCH Power Designer tool, which allows you to configure the TPS659163RGZT for your specific application. This tool helps you select the optimal configuration, generates a schematic, and provides a bill of materials.
  • Although the datasheet specifies a maximum input voltage of 5.5V, the TPS659163RGZT can handle input voltages up to 6V for short durations (e.g., during power-up or voltage transients). However, it's recommended to operate within the specified range for optimal performance and reliability.
  • Texas Instruments provides a troubleshooting guide in the TPS659163RGZT datasheet (SLVSBL7). Additionally, you can use the TI E2E community forum to ask questions and get help from experts and other users who have experience with the device.
  • Yes, the TPS659163RGZT is compatible with lead-free soldering processes. Texas Instruments ensures that their devices meet the requirements for lead-free assembly and reflow soldering.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS659163RGZT Overview

Use the download button to access the TPS659163RGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65, or try a keyword search, such as Power Management Circuits
