TPS65930A2ZCHR - Texas Instruments

Description: TEXAS INSTRUMENTS - TPS65930A2ZCHR - PWR MANAGEMENT IC, 7 OUTPUT, NFBGA-139

Download TPS65930A2ZCHR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TPS65930A2ZCHR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

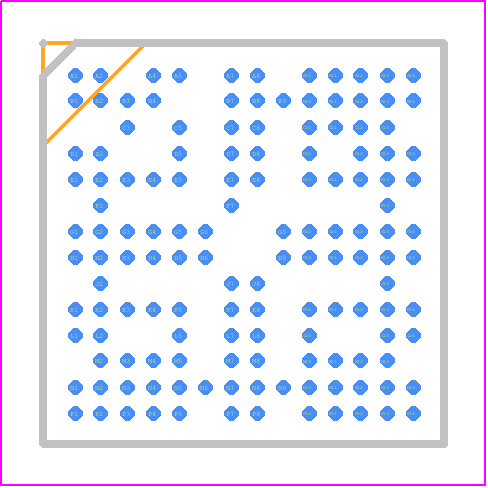

TPS65930A2ZCHR - Texas Instruments PCB footprint - BGA - BGA - ZCH(S-PBGA-N139)
click to zoom
3D Models
TPS65930A2ZCHR - Texas Instruments - 3D model - BGA - ZCH(S-PBGA-N139)
click to zoom

TPS65930A2ZCHR Details

  • Manufacturer Part Number:

    TPS65930A2ZCHR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    139

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.G

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    S-PBGA-B139

  • JESD-609 Code:

    e1

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    7

  • Number of Functions:

    1

  • Number of Outputs:

    7

  • Number of Terminals:

    139

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.2 A

  • Output Voltage-Max:

    3.15 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA139,14X14,25

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.3 mm

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    3.2

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

TPS65930A2ZCHR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the TPS65930A2ZCHR evaluation module (EVM) user's guide. It's essential to follow this guide to ensure proper operation and minimize noise and EMI issues.
  • The TPS65930A2ZCHR has a wide range of configuration options. Texas Instruments provides a configuration tool, the TPS65930A2ZCHR Configurator, which helps engineers configure the device for their specific application. The tool generates a configuration file that can be loaded into the device.
  • The maximum current capability of the TPS65930A2ZCHR's power switches depends on the specific switch and the operating conditions. Refer to the datasheet for the maximum current ratings for each switch. Additionally, consider the thermal and PCB design to ensure the device can handle the required current.
  • Texas Instruments provides a troubleshooting guide in the TPS65930A2ZCHR datasheet and application notes. Engineers can also use the TPS65930A2ZCHR EVM to test and debug their design. Additionally, Texas Instruments offers technical support and a community forum for further assistance.
  • The TPS65930A2ZCHR has a thermal pad that must be connected to a thermal plane on the PCB to ensure proper heat dissipation. The device's junction temperature (TJ) should be kept below 125°C. Engineers should follow the thermal design guidelines in the datasheet and application notes to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS65930A2ZCHR Overview

Use the download button to access the TPS65930A2ZCHR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65, or try a keyword search, such as Power Management Circuits
