TPS65930BZCHR - Texas Instruments

Description: IC PWR MGMT 4 LDO TXRX 139BGA

Download TPS65930BZCHR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TPS65930BZCHR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

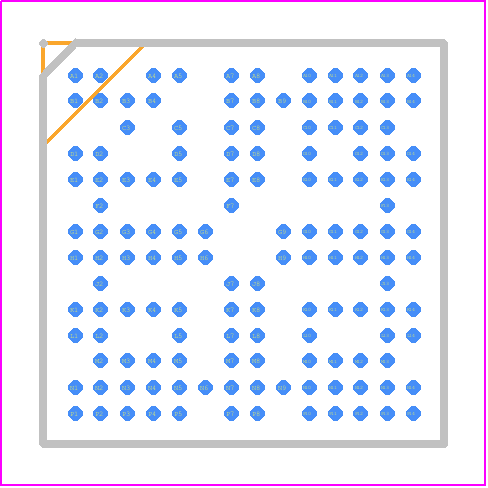

TPS65930BZCHR - Texas Instruments PCB footprint - BGA - BGA - ZCH(S-PBGA-N139)
click to zoom
3D Models
TPS65930BZCHR - Texas Instruments - 3D model - BGA - ZCH(S-PBGA-N139)
click to zoom

TPS65930BZCHR Details

  • Manufacturer Part Number:

    TPS65930BZCHR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    BGA

  • Package Description:

    NFBGA-139

  • Pin Count:

    139

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    ALSO AVAILABLE THRESHOLD ARE +2.65V, +2.85V, +2.7V, +3.2V

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PBGA-B139

  • Length:

    10 mm

  • Number of Channels:

    7

  • Number of Functions:

    1

  • Number of Terminals:

    139

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA139,14X14,25

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Seated Height-Max:

    1.3 mm

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +1.8V,+2.1V

  • Width:

    10 mm

TPS65930BZCHR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and placement guide in the TPS65930BZCHR Evaluation Module User's Guide (SLUUAC5). It's essential to follow this guide to ensure proper thermal performance, noise reduction, and signal integrity.
  • The TPS65930BZCHR has a wide range of configuration options. Texas Instruments provides a Power Management Unit (PMU) Configuration Tool (TPS65930-CONFIG-GUI) that helps engineers configure the device for their specific application. The tool generates a configuration file that can be used to program the device.
  • The maximum current capability of the TPS65930BZCHR's power rails depends on the specific rail and the thermal design of the system. The datasheet provides thermal derating curves and maximum current ratings for each rail. Engineers should consult the datasheet and perform thermal analysis to determine the maximum current capability for their specific application.
  • Texas Instruments provides a troubleshooting guide in the TPS65930BZCHR datasheet (SLVSAC9). Engineers can also use the TPS65930BZCHR Evaluation Module User's Guide (SLUUAC5) and the Power Management Unit (PMU) Configuration Tool (TPS65930-CONFIG-GUI) to help identify and resolve issues.
  • The TPS65930BZCHR has a thermal pad that must be connected to a thermal plane on the PCB to ensure proper heat dissipation. Engineers should follow the thermal design guidelines in the datasheet and the TPS65930BZCHR Evaluation Module User's Guide (SLUUAC5) to ensure proper thermal performance.
