TPS65980RHFR - Texas Instruments

Description: Thunderbolt™ Bus Power Power Management IC (PMIC)

Download TPS65980RHFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

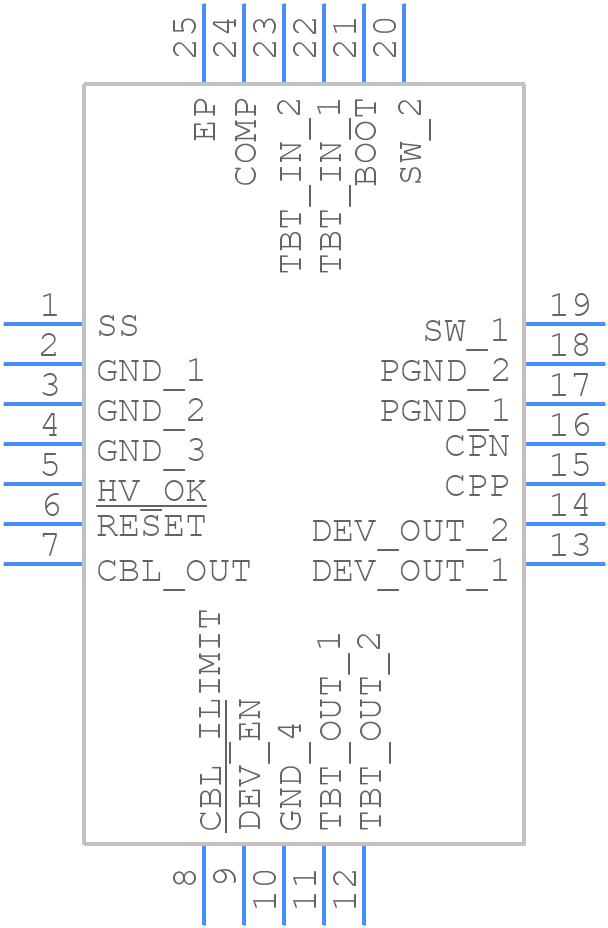

TPS65980RHFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65980RHFR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHF (R-PVQFN-N24)
click to zoom
3D Models
TPS65980RHFR - Texas Instruments - 3D model - Quad Flat No-Lead - RHF (R-PVQFN-N24)
click to zoom

TPS65980RHFR Details

  • Manufacturer Part Number:

    TPS65980RHFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Input Voltage-Max:

    15.75 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.5 A

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS65980RHFR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the TPS65980RHFR Evaluation Module User's Guide (SLUUAC5). It's essential to follow this guide to ensure proper operation and minimize noise and EMI issues.
  • The TPS65980RHFR has a wide range of configuration options. TI provides a software tool called the TPS65980 Configurator Tool (TPS65980CT) that helps engineers configure the device for their specific application. The tool generates a configuration file that can be loaded into the device.
  • The TPS65980RHFR's power switches are capable of delivering up to 2.5A of continuous current. However, the actual current capability depends on the specific application, PCB layout, and thermal design. It's essential to perform thermal analysis and simulation to ensure the device operates within its thermal limits.
  • TI provides a troubleshooting guide in the TPS65980RHFR datasheet (SLVSAC9). Additionally, engineers can use the TPS65980RHFR Evaluation Module to test and debug their design. TI also offers a range of support resources, including the TI E2E forum and technical support team.
  • The TPS65980RHFR is a general-purpose power management IC that can be used with a wide range of processors and SoCs. However, it's essential to verify compatibility by checking the processor's power requirements and ensuring that the TPS65980RHFR can meet those requirements. TI provides a range of reference designs and application notes for popular processors and SoCs.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS65980RHFR Overview

Use the download button to access the TPS65980RHFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS65, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
