TPS65980RHFT - Texas Instruments

Description: Power Management Specialized - PMIC DC/DC switching regulator

Download TPS65980RHFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

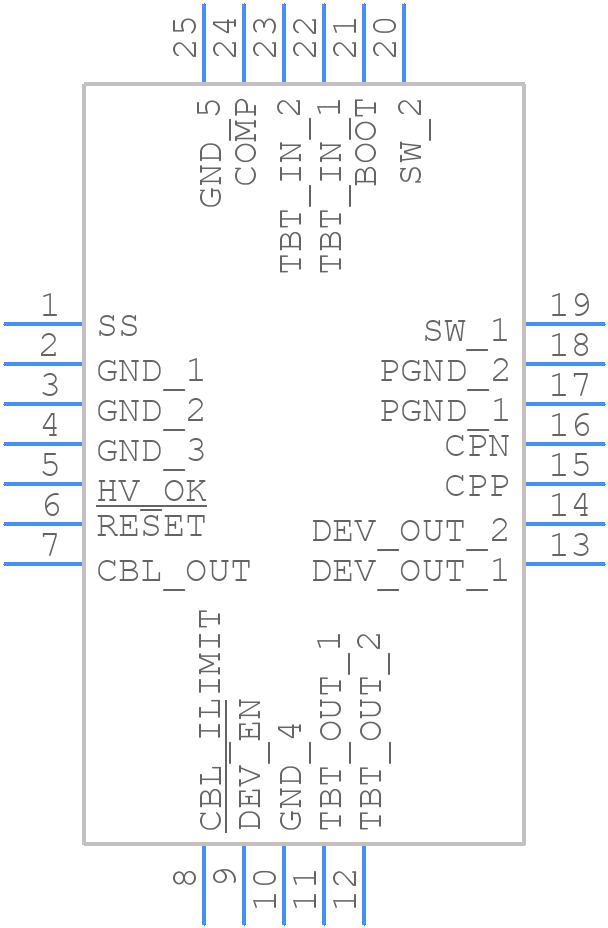

TPS65980RHFT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS65980RHFT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHF0024A
click to zoom
3D Models
TPS65980RHFT - Texas Instruments - 3D model - Quad Flat No-Lead - RHF0024A
click to zoom

TPS65980RHFT Details

  • Manufacturer Part Number:

    TPS65980RHFT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Input Voltage-Max:

    15.75 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.5 A

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS65980RHFT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the TPS65980RHFT Evaluation Module User's Guide (SLUUAC5). It's essential to follow this guide to ensure proper operation and minimize noise and EMI issues.
  • The TPS65980RHFT has a wide range of configuration options. Texas Instruments provides a Power Management Unit (PMU) Configuration Tool (SWCU126) that helps engineers configure the device for their specific application. The tool generates a configuration file that can be used to program the device.
  • The TPS65980RHFT can handle input voltages up to 28V, but it's recommended to limit the input voltage to 24V to ensure reliable operation and minimize stress on the device.
  • Texas Instruments provides a Troubleshooting Guide (SLUAAC5) that helps engineers identify and resolve common issues with the TPS65980RHFT. The guide covers topics such as power-up sequencing, voltage monitoring, and fault detection.
  • The TPS65980RHFT is rated for operation up to 105°C, but it's essential to ensure that the device is properly cooled and that the thermal design is adequate for the specific application. Texas Instruments provides thermal design guidelines in the datasheet and application notes.
