Texas Instruments provides a recommended layout and placement guide in the TPS68000DBT datasheet (Section 10.1) and in the TPS68000DBT Evaluation Module User's Guide (SLUU444). It's essential to follow these guidelines to ensure proper thermal performance, noise reduction, and signal integrity.
The TPS68000DBT is a highly configurable device. To select the correct output voltage and configuration, refer to the datasheet (Section 7) and use the Texas Instruments Power Architect tool or the TPS68000DBT Calculator Tool to determine the optimal configuration for your specific application.
The TPS68000DBT has a high power density, so thermal management is crucial. Ensure proper heat dissipation by using a heat sink, following the recommended PCB layout, and keeping the device away from other heat sources. Refer to the datasheet (Section 10.2) for thermal design guidelines and calculations.
For troubleshooting and debugging, refer to the datasheet (Section 11) and the TPS68000DBT Troubleshooting Guide (SLUA623). Use tools like oscilloscopes, logic analyzers, and Texas Instruments' debugging software to identify and resolve issues. Also, consult the Texas Instruments support forums and documentation for common issues and solutions.
The TPS68000DBT is designed to meet EMI and EMC regulatory standards. To ensure compliance, follow the recommended PCB layout, use proper shielding and filtering, and refer to the datasheet (Section 10.3) and the TPS68000DBT EMI and EMC Application Report (SLUA624) for guidance on meeting regulatory standards like CISPR 22 and FCC Part 15.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS68000DBT Overview

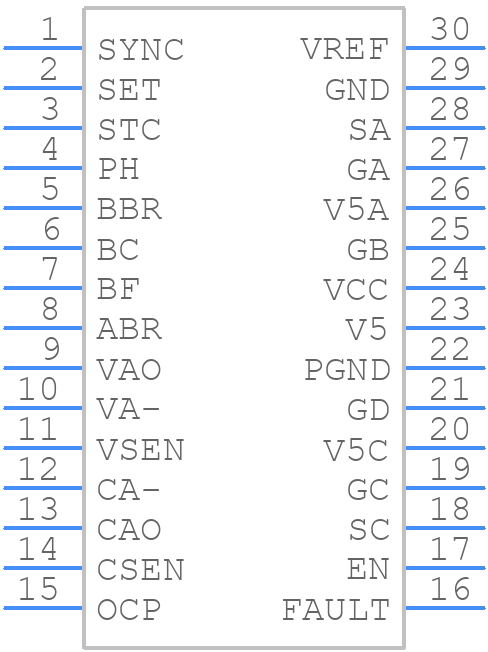

Use the download button to access the TPS68000DBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS68,
or try a keyword search, such as Switching Regulator or Controllers
