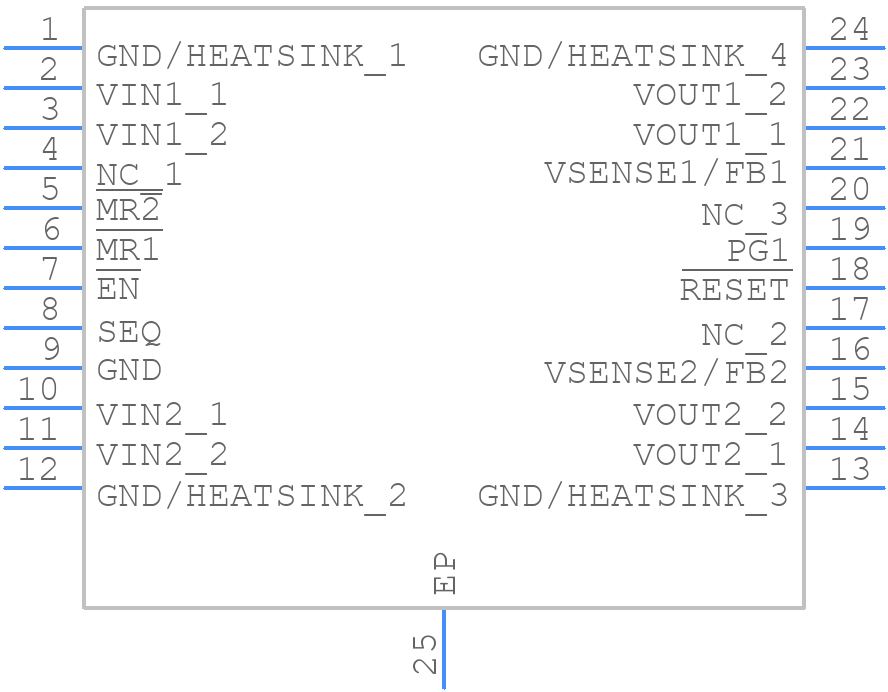

TPS70302PWPR - Texas Instruments

TPS70302PWPR Details

• Manufacturer Part Number:

  TPS70302PWPR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  TSSOP

• Package Description:

  HTSSOP-24

• Pin Count:

  24

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Adjustability:

  ADJUSTABLE

• Dropout Voltage1-Max:

  0.25 V

• Dropout Voltage1-Nom:

  0.16 V

• Dropout Voltage2-Max:

  0.25 V

• Input Voltage-Max:

  6 V

• Input Voltage-Min:

  2.7 V

• JESD-30 Code:

  R-PDSO-G24

• JESD-609 Code:

  e4

• Length:

  7.8 mm

• Line Regulation-Max (%/V):

  0.1

• Load Regulation-Max(%):

  0.08%

• Moisture Sensitivity Level:

  2

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  24

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  1 A

• Output Current2-Max:

  2 A

• Output Voltage1-Max:

  5.5 V

• Output Voltage1-Min:

  1.2 V

• Output Voltage2-Max:

  5.5 V

• Output Voltage2-Min:

  1.22 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTSSOP

• Package Equivalence Code:

  TSSOP24,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Regulator Type:

  ADJUSTABLE POSITIVE MULTIPLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  1.2 mm

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Voltage Tolerance-Max:

  2%

• Width:

  4.4 mm
