SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Regulator Type:
ADJUSTABLE POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Technology:
CMOS
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Voltage Tolerance-Max:
2%
Width:
4.4 mm
TPS70802PWPG4 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for LDO regulator layout, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
The output voltage tolerance of the TPS70802PWPG4 is specified as ±2% over the operating temperature range. To calculate the output voltage tolerance, multiply the nominal output voltage by the tolerance percentage. For example, for a 3.3V output, the tolerance would be ±66mV (3.3V x 0.02).
The absolute maximum input voltage rating for the TPS70802PWPG4 is 15V. However, it's recommended to operate the device within the recommended input voltage range of 2.7V to 12V to ensure optimal performance and reliability.
The TPS70802PWPG4 is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's recommended to follow the thermal design guidelines in the datasheet and to derate the device's performance accordingly.
To ensure stability, follow the recommended output capacitor selection guidelines in the datasheet, and use a capacitor with a low equivalent series resistance (ESR). Additionally, ensure that the input capacitor is properly sized and placed close to the device. Avoid using capacitors with high ESR or inductance, as they can cause oscillation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS70802PWPG4 Overview

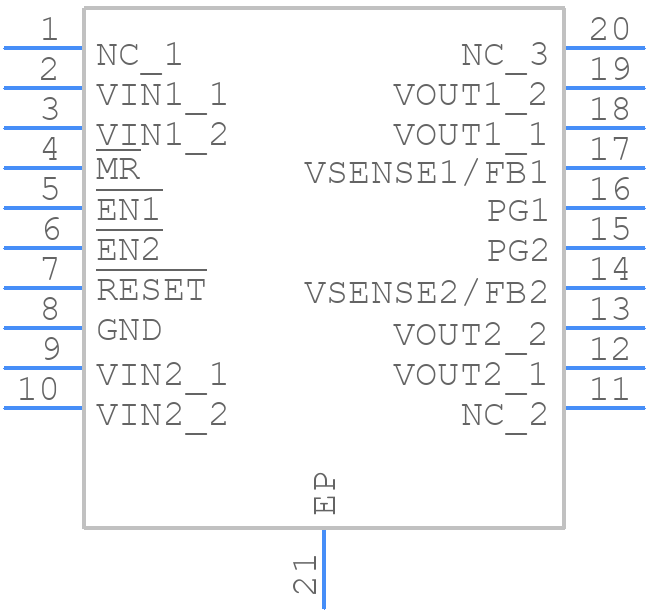

Use the download button to access the TPS70802PWPG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS70,
or try a keyword search, such as Linear Regulator ICs
