Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general best practices for high-frequency PCB design, such as using a solid ground plane, minimizing trace lengths, and using vias to connect the input and output capacitors to the ground plane.
The choice of input and output capacitors depends on the specific application requirements, such as the input voltage range, output current, and ripple requirements. Texas Instruments recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. Additionally, the capacitors should be placed as close as possible to the device pins to minimize parasitic inductance.
The TPS71733DRVRG4 has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal design and heat sinking to prevent overheating, especially in high-power applications.
To ensure stability, it's crucial to follow the recommended component values and PCB layout guidelines. Additionally, the output voltage should be decoupled with a capacitor (typically 10uF to 22uF) to prevent oscillations. The device also has a built-in soft-start feature to prevent inrush currents and oscillations during startup.
The TPS71733DRVRG4 has a recommended input voltage range of 2.7V to 5.5V, but it can operate down to 2.5V with reduced performance. It's essential to ensure the input voltage is within the recommended range to maintain optimal performance and prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS71733DRVRG4 Overview

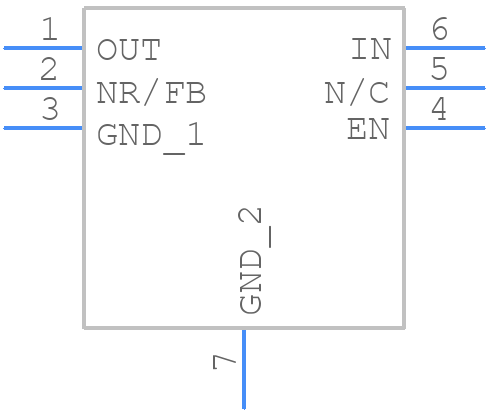

Use the download button to access the TPS71733DRVRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS71,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
