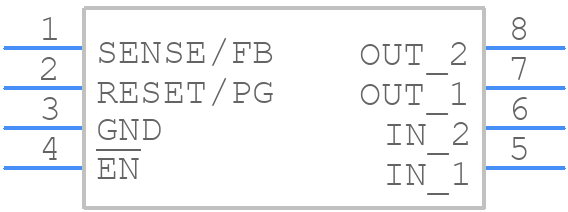

TPS7248QD - Texas Instruments

TPS7248QD Details

• Manufacturer Part Number:

  TPS7248QD

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC

• Pin Count:

  8

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.285 V

• Dropout Voltage1-Nom:

  0.56 V

• Input Voltage Absolute-Max:

  10 V

• Input Voltage-Max:

  10 V

• Input Voltage-Min:

  5.24 V

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e4

• Length:

  4.9 mm

• Line Regulation-Max:

  0.05%

• Load Regulation-Max:

  0.135%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current1-Max:

  0.25 A

• Output Voltage1-Max:

  4.95 V

• Output Voltage1-Min:

  4.75 V

• Output Voltage1-Nom:

  4.8 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP8,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TUBE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  1.75 mm

• Surface Mount:

  YES

• Technology:

  PMOS

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Voltage Tolerance-Max:

  2.06%

• Width:

  3.905 mm
