TPS7250QP - Texas Instruments

Description: TPS7250QP, Low Dropout Voltage Regulator, 0.25A, 5 V ±2%, 5.41 → 10 Vin, 0.762W, 8-Pin PDIP

Download TPS7250QP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

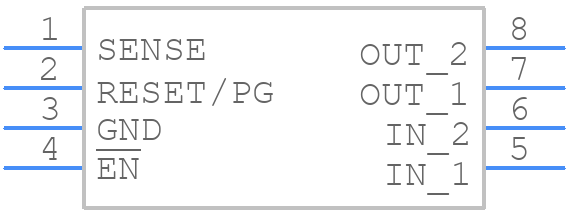

TPS7250QP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS7250QP - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-DIP (0.300", 7.62mm)
click to zoom
3D Models
TPS7250QP - Texas Instruments - 3D model - Dual-In-Line Packages - 8-DIP (0.300", 7.62mm)
click to zoom

TPS7250QP Details

  • Manufacturer Part Number:

    TPS7250QP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.312 V

  • Dropout Voltage1-Nom:

    0.56 V

  • Input Voltage Absolute-Max:

    10 V

  • Input Voltage-Max:

    10 V

  • Input Voltage-Min:

    5.41 V

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e4

  • Length:

    9.81 mm

  • Line Regulation-Max:

    0.035%

  • Load Regulation-Max:

    0.15%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.25 A

  • Output Voltage1-Max:

    5.1 V

  • Output Voltage1-Min:

    4.9 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    5.08 mm

  • Surface Mount:

    NO

  • Technology:

    PMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    2%

  • Width:

    6.35 mm

TPS7250QP Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS7250QP is 5.5V, as specified in the absolute maximum ratings section of the datasheet. Exceeding this voltage can cause damage to the device.
  • To ensure stability of the output voltage, it is recommended to use a minimum output capacitance of 2.2uF and a maximum ESR of 1 ohm, as specified in the datasheet. Additionally, the input capacitance should be at least 1uF to ensure stability of the input voltage.
  • The minimum input voltage required for the TPS7250QP to operate is 2.7V, as specified in the electrical characteristics section of the datasheet. However, the device can operate down to 2.5V with reduced performance.
  • The TPS7250QP is rated for operation up to 125°C, but the device's performance and reliability may be affected at high temperatures. It is recommended to derate the output current and input voltage according to the thermal derating curves provided in the datasheet.
  • The power dissipation of the TPS7250QP can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. The thermal resistance of the package should also be considered to ensure that the junction temperature does not exceed the maximum rating.
