TPS73HD301PWP - Texas Instruments

Description: Dual Output Low-Dropout Voltage Regulator

Download TPS73HD301PWP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

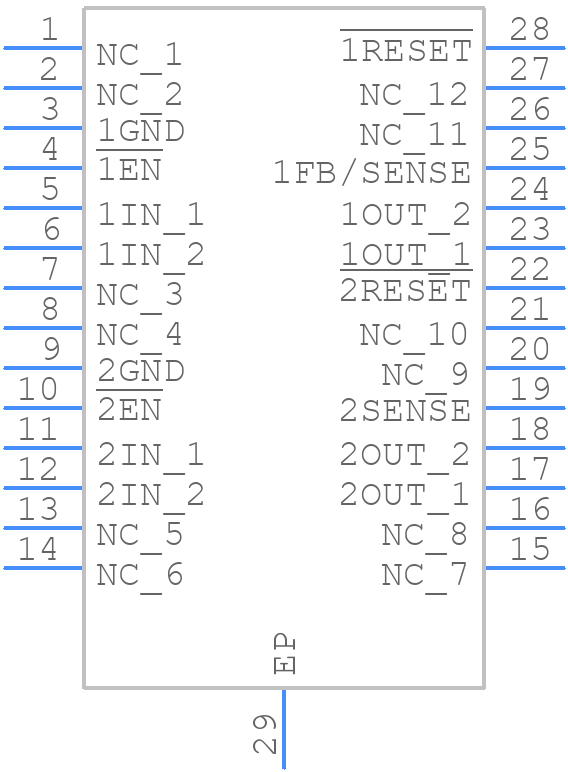

TPS73HD301PWP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS73HD301PWP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP (R-PDSO-G28)-
click to zoom
3D Models
TPS73HD301PWP - Texas Instruments - 3D model - Small Outline Packages - PWP (R-PDSO-G28)-
click to zoom

TPS73HD301PWP Details

  • Manufacturer Part Number:

    TPS73HD301PWP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustability:

    FIXED/ADJUSTABLE

  • Dropout Voltage1-Max:

    0.8 V

  • Dropout Voltage1-Nom:

    0.22 V

  • Dropout Voltage2-Max:

    0.8 V

  • Input Voltage Absolute-Max:

    11 V

  • Input Voltage-Max:

    10 V

  • Input Voltage-Min:

    2.9 V

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Load Regulation-Max:

    0.037%

  • Load Regulation-Max(%):

    1.12%

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    28

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.75 A

  • Output Current2-Max:

    0.75 A

  • Output Voltage1-Max:

    9.7 V

  • Output Voltage1-Min:

    1.2 V

  • Output Voltage1-Nom:

    3.3 V

  • Output Voltage2-Max:

    9.75 V

  • Output Voltage2-Min:

    1.2 V

  • Output Voltage2-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED/ADJUSTABLE POSITIVE MULTIPLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2.12%

  • Width:

    4.4 mm

TPS73HD301PWP Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS73HD301PWP is 18V, but it's recommended to operate within the specified input voltage range of 5.5V to 15V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines provided in the datasheet, including the use of a suitable output capacitor and input filter components.
  • The minimum input capacitance required for the TPS73HD301PWP is 10uF, but it's recommended to use a higher value capacitor (e.g., 22uF) to ensure stable operation and minimize input voltage ripple.
  • The TPS73HD301PWP is rated for operation up to 125°C, but it's essential to consider the thermal design and heat dissipation in the system to ensure reliable operation. A thermal analysis should be performed to ensure the device operates within its specified temperature range.
  • The power dissipation of the TPS73HD301PWP can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. It's essential to consider the power dissipation and thermal design to ensure reliable operation.
