Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for thermal management, such as using a solid ground plane, placing thermal vias under the device, and keeping the thermal path short and direct.
The TPS745115PQWDRBRQ1 has a power-good output (PG) that can be used to monitor the output voltage. It's recommended to use this signal to ensure the device is properly powered up and configured during startup. Additionally, the device has an enable input (EN) that can be used to control the power-up sequence.
The datasheet recommends a maximum output capacitance of 10uF, but this can be increased with proper design considerations. It's essential to ensure the output capacitance is properly sized to prevent oscillations and ensure stability.
The TPS745115PQWDRBRQ1 has built-in OVP and UVP, but it's recommended to add external protection circuits to ensure the device is protected from voltage transients and faults. This can include adding external voltage supervisors, fuses, or other protection devices.
The datasheet recommends a minimum input capacitance of 1uF, but the optimal value depends on the input voltage, output current, and PCB layout. It's recommended to use a low-ESR ceramic capacitor, such as an X5R or X7R type, to minimize voltage ripple and ensure stability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS745115PQWDRBRQ1 Overview

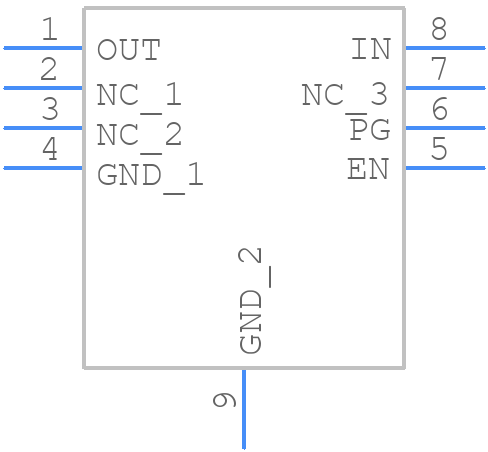

Use the download button to access the TPS745115PQWDRBRQ1 schematic symbol, PCB footprint, and 3D model.
