The maximum input voltage that can be applied to the TPS74515PQWDRBRQ1 is 5.5V, as specified in the datasheet. However, it's recommended to operate the device within the recommended input voltage range of 2.7V to 5.5V for optimal performance and reliability.
To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines provided in the datasheet. This includes using a suitable output capacitor, such as a 10uF ceramic capacitor, and placing it close to the output pin. Additionally, ensure that the input capacitor is properly sized and placed to minimize input voltage ripple.
The maximum output current that the TPS74515PQWDRBRQ1 can deliver is 1.5A, as specified in the datasheet. However, the actual output current may be limited by the input voltage, output voltage, and thermal considerations. It's essential to check the device's thermal performance and power dissipation to ensure reliable operation.
Thermal management is critical for the TPS74515PQWDRBRQ1, especially in high-power applications. Ensure that the device is mounted on a suitable PCB with adequate thermal vias and a heat sink, if necessary. The datasheet provides thermal resistance and power dissipation data to help with thermal design and analysis.
The EN (enable) pin is used to enable or disable the TPS74515PQWDRBRQ1. When the EN pin is high, the device is enabled, and when it's low, the device is disabled. This pin can be used to implement power sequencing, shutdown, or low-power modes in your design. Ensure that the EN pin is properly biased and decoupled to prevent unwanted device operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS74515PQWDRBRQ1 Overview

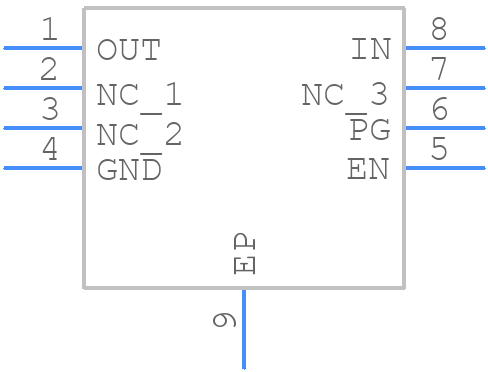

Use the download button to access the TPS74515PQWDRBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS74,
or try a keyword search, such as Linear Regulator ICs
