The maximum input voltage that can be applied to the TPS74517PQWDRBRQ1 is 5.5V, as specified in the datasheet. However, it's recommended to operate the device within the recommended input voltage range of 2.7V to 5.5V for optimal performance and reliability.
To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines provided in the datasheet. Additionally, make sure to use a suitable output capacitor with a low equivalent series resistance (ESR) and a sufficient capacitance value to filter out noise and ripple.
The TPS74517PQWDRBRQ1 is a low-dropout linear regulator (LDO) that can deliver a minimum output current of 1mA, making it suitable for low-power applications. However, the device can deliver up to 150mA of output current, depending on the input voltage and output voltage settings.
The output voltage of the TPS74517PQWDRBRQ1 can be programmed using an external resistor divider network connected to the VOUT pin. The datasheet provides a formula to calculate the required resistor values based on the desired output voltage. Additionally, the device has a fixed output voltage option, which can be selected by connecting the VOUT pin to the desired fixed output voltage pin (e.g., VOUT1, VOUT2, or VOUT3).
The thermal shutdown temperature of the TPS74517PQWDRBRQ1 is typically around 150°C to 160°C. When the device temperature exceeds this threshold, the internal thermal shutdown circuitry will shut down the device to prevent damage. The device will automatically restart once the temperature drops below the thermal shutdown threshold.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS74517PQWDRBRQ1 Overview

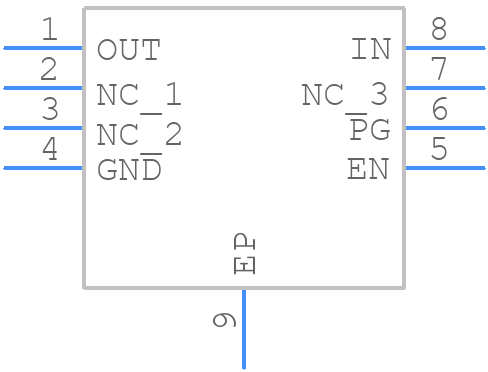

Use the download button to access the TPS74517PQWDRBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS74,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
