Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance. A good rule of thumb is to have a solid copper pour on the top and bottom layers, and to use thermal vias to connect the pour to the thermal pad of the device.
The TPS74550PQWDRBRQ1 has a power-on reset (POR) circuit that ensures the device is properly powered up and configured during startup. However, it's recommended to add an external capacitor to the EN pin to ensure a clean power-up sequence. Additionally, the device has a soft-start feature that can be enabled to limit the inrush current during startup.
The maximum output current of the TPS74550PQWDRBRQ1 is 5A, but this is dependent on the input voltage, output voltage, and ambient temperature. It's recommended to derate the output current based on the specific application conditions to ensure safe operation. Additionally, the device has overcurrent protection (OCP) and short-circuit protection (SCP) to prevent damage in case of an overload or short-circuit condition.
Texas Instruments provides a troubleshooting guide in the datasheet, which includes a list of common issues and their possible causes. Additionally, it's recommended to use oscilloscopes and other measurement tools to analyze the input and output waveforms, and to check the device's operating conditions, such as input voltage, output voltage, and temperature. It's also recommended to consult the device's application notes and technical documentation for more detailed guidance.
Yes, the TPS74550PQWDRBRQ1 is a high-frequency switching regulator, and as such, it can generate electromagnetic interference (EMI). It's recommended to follow good EMI/EMC design practices, such as using a solid copper pour on the PCB, placing the device away from sensitive analog circuits, and using EMI filters or shielding to minimize radiation. Additionally, the device has a spread-spectrum clocking feature that can help reduce EMI emissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS74550PQWDRBRQ1 Overview

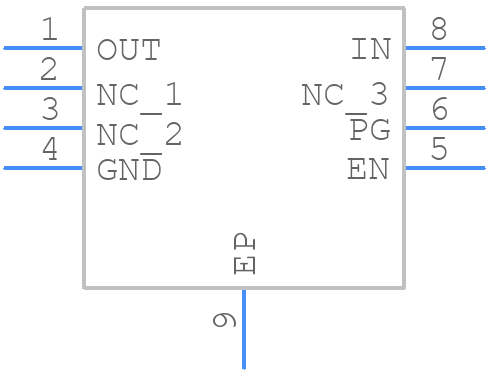

Use the download button to access the TPS74550PQWDRBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS74,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
