Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for low-dropout regulator (LDO) layouts, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
To ensure stability, the output capacitor should meet the minimum ESR (Equivalent Series Resistance) and capacitance requirements specified in the datasheet. Additionally, the capacitor should be placed close to the device and the output voltage should be decoupled with a ceramic capacitor.
The maximum input voltage that can be applied to the TPS77401MDGKREP is 15V, but it's recommended to operate the device within the recommended input voltage range of 2.7V to 12V for optimal performance and reliability.
The TPS77401MDGKREP has a soft-start feature that limits the inrush current during power-up, and it also has an internal pull-down resistor on the enable pin to ensure a clean power-down sequence. However, it's recommended to follow a controlled power-up and power-down sequence to prevent voltage glitches and ensure reliable operation.
The TPS77401MDGKREP is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage according to the thermal derating curves provided in the datasheet. Additionally, it's essential to ensure proper thermal management and heat sinking to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS77401MDGKREP Overview

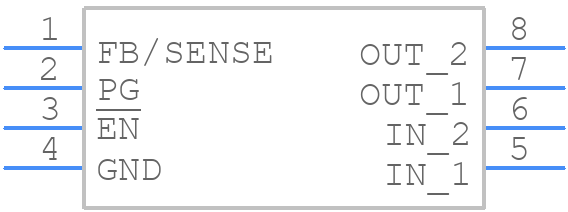

Use the download button to access the TPS77401MDGKREP schematic symbol, PCB footprint, and 3D model.
