Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI.
Choose input capacitors with a voltage rating higher than the maximum input voltage, and output capacitors with a voltage rating higher than the output voltage. Also, consider the capacitor's ESR, ESL, and ripple current rating to ensure they can handle the switching frequency and output current.
The maximum ambient temperature for the TPS78001DRVR is 85°C, but it's essential to consider the device's thermal characteristics, such as the junction-to-ambient thermal resistance (RθJA), to ensure the device operates within its recommended temperature range.
Yes, the TPS78001DRVR is qualified for automotive and high-reliability applications, but it's essential to follow the recommended design and manufacturing guidelines, such as using a qualified manufacturer, and ensuring the device is properly tested and validated for the specific application.
Use a systematic approach to troubleshoot issues, starting with a review of the PCB layout, component selection, and soldering quality. Use oscilloscopes and thermal imaging cameras to identify voltage and temperature anomalies, and consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS78001DRVR Overview

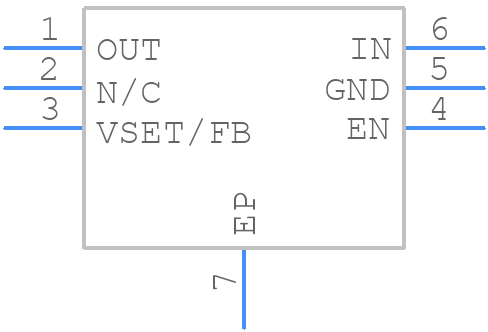

Use the download button to access the TPS78001DRVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS78,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
