TPS78001DRVRG4 - Texas Instruments

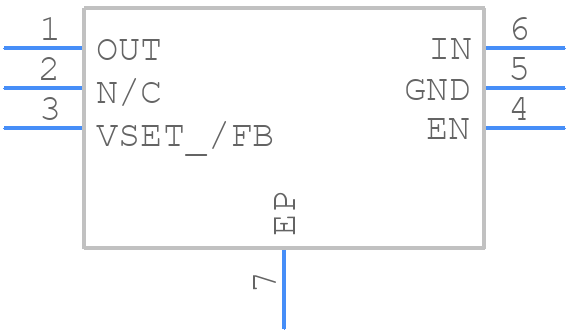

TPS78001DRVRG4 Details

• Manufacturer Part Number:

  TPS78001DRVRG4

• Brand Name:

  Texas Instruments

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SON

• Package Description:

  SON-6

• Pin Count:

  6

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Adjustability:

  ADJUSTABLE

• Dropout Voltage1-Max:

  0.25 V

• Dropout Voltage1-Nom:

  0.2 V

• Input Voltage-Max:

  5.5 V

• Input Voltage-Min:

  2.2 V

• JESD-30 Code:

  S-PDSO-N6

• JESD-609 Code:

  e4

• Length:

  2 mm

• Line Regulation-Max (%/V):

  0.27

• Load Regulation-Max(%):

  2%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  6

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current1-Max:

  0.15 A

• Output Voltage1-Max:

  5.25 V

• Output Voltage1-Min:

  1.2 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC6,.08,25

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Regulator Type:

  ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  0.8 mm

• Surface Mount:

  YES

• Technology:

  PMOS

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Voltage Tolerance-Max:

  3%

• Width:

  2 mm
