Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general guidelines for LDO regulator layout, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
The TPS79501DRBRG4 is stable with ceramic, tantalum, or aluminum electrolytic capacitors, but the output capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) can affect stability. TI recommends using a capacitor with an ESR of 0.1 Ω to 10 Ω and an ESL of less than 10 nH. Additionally, the output capacitor should be placed close to the device and connected to the output pin with a short, wide trace.
The TPS79501DRBRG4 has an absolute maximum input voltage rating of 12 V, but it's recommended to operate the device within the specified input voltage range of 2.2 V to 10 V to ensure reliable operation and prevent damage.
The TPS79501DRBRG4 has a built-in undervoltage lockout (UVLO) circuit that disables the device when the input voltage falls below 1.7 V. During input voltage transients or brownouts, the device will shut down and restart when the input voltage recovers to a level above the UVLO threshold.
The TPS79501DRBRG4 has an operating junction temperature range of -40°C to 125°C, but the device's performance and reliability may degrade at high temperatures. TI recommends derating the device's output current and power dissipation at high temperatures to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS79501DRBRG4 Overview

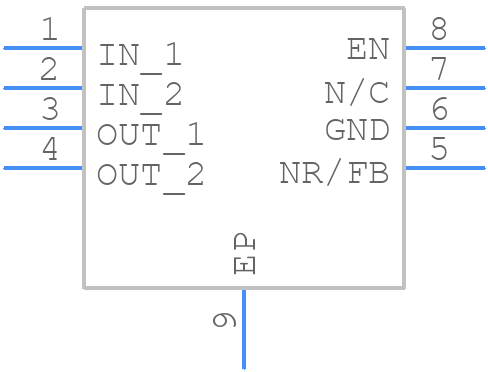

Use the download button to access the TPS79501DRBRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS79,
or try a keyword search, such as Linear Regulator ICs
