Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for LDO regulator layout, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
The output voltage tolerance of the TPS79501DRBTG4 is specified as ±2% over the operating temperature range. To calculate the output voltage tolerance, multiply the nominal output voltage by the tolerance percentage (e.g., for a 1.8V output, the tolerance would be ±36mV).
The maximum input voltage that can be applied to the TPS79501DRBTG4 is 6.5V, which is the absolute maximum rating. However, it's recommended to operate the device within the recommended input voltage range of 2.2V to 5.5V to ensure optimal performance and reliability.
The TPS79501DRBTG4 has a soft-start feature that helps to reduce inrush current during power-up. During power-down, the device will shut down quickly to minimize power consumption. However, the exact behavior may depend on the specific application and circuit design.
The TPS79501DRBTG4 is rated for operation up to 125°C, but the device's performance and reliability may degrade at higher temperatures. It's recommended to follow the recommended operating conditions and to consult with Texas Instruments or a qualified engineer for specific guidance on high-temperature applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS79501DRBTG4 Overview

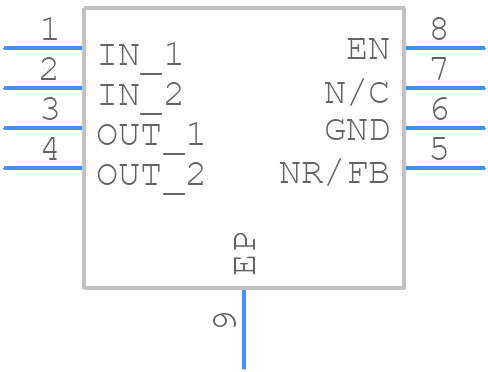

Use the download button to access the TPS79501DRBTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS79,
or try a keyword search, such as Linear Regulator ICs
