A good PCB layout for the TPS79918DRVT involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the stability of the TPS79918DRVT output voltage, it's essential to use the recommended output capacitor value and type, and to place it close to the device. Additionally, the input voltage should be stable and within the recommended range, and the device should be operated within its recommended operating conditions.
The TPS79918DRVT can handle input voltages up to 5.5V, but it's recommended to operate the device within the recommended input voltage range of 2.7V to 5.5V for optimal performance and reliability.
The TPS79918DRVT is rated for operation up to 125°C, but it's recommended to derate the device's performance at high temperatures. It's essential to ensure that the device is operated within its recommended operating conditions and that the PCB is designed to handle high temperatures.
To troubleshoot issues with the TPS79918DRVT, start by checking the input voltage, output voltage, and output current. Verify that the device is operated within its recommended operating conditions, and check for any signs of overheating or physical damage. Use an oscilloscope to check for any noise or oscillations on the output voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS79918DRVT Overview

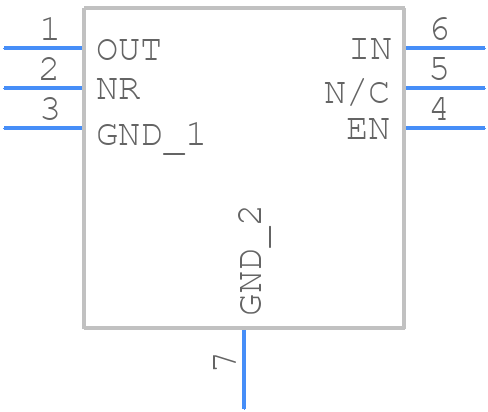

Use the download button to access the TPS79918DRVT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS79,
or try a keyword search, such as Linear Regulator ICs
