TPS7A1130PDRVT - Texas Instruments

Description: 500mA low-Vin low-Vout low-Iq ultra-low-dropout linear regulator

Download TPS7A1130PDRVT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

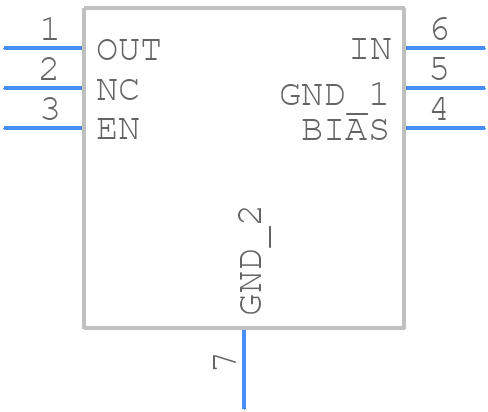

TPS7A1130PDRVT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS7A1130PDRVT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRV0006A
click to zoom
3D Models
TPS7A1130PDRVT - Texas Instruments - 3D model - Small Outline No-lead - DRV0006A
click to zoom

TPS7A1130PDRVT Details

  • Manufacturer Part Number:

    TPS7A1130PDRVT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.14 V

  • Dropout Voltage1-Nom:

    0.13 V

  • Input Voltage Absolute-Max:

    3.6 V

  • Input Voltage-Max:

    3.3 V

  • Input Voltage-Min:

    0.75 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Line Regulation-Max:

    0.0000765%

  • Load Regulation-Max:

    0.0029994%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    3.045 V

  • Output Voltage1-Min:

    2.955 V

  • Output Voltage1-Nom:

    3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1.5%

  • Width:

    2 mm

TPS7A1130PDRVT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TPS7A1130PDRVT datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and improve stability.
  • To ensure accurate and stable output voltage, it's essential to follow the recommended input and output capacitor selection, use a stable input voltage, and minimize noise and ripple on the input and output lines. Additionally, the output voltage can be trimmed using the VTRIM pin to achieve high accuracy.
  • Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the device. Exceeding the maximum input voltage can cause permanent damage or affect the device's performance.
  • The TPS7A1130PDRVT has a thermal pad that must be connected to a solid ground plane or a thermal relief pattern to dissipate heat efficiently. It's also recommended to use a heat sink or a thermal interface material to improve thermal conductivity and reduce the junction temperature.
  • A low-ESR ceramic capacitor with a value of 1-10uF is recommended for the input capacitor. The capacitor should be placed as close as possible to the VIN pin to minimize noise and improve stability.
