TPS7A1601ADGNR - Texas Instruments

Description: 100-mA, 60-V, 5-μA quiescent current, low-dropout (LDO) voltage regulator with power good and enable

Download TPS7A1601ADGNR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

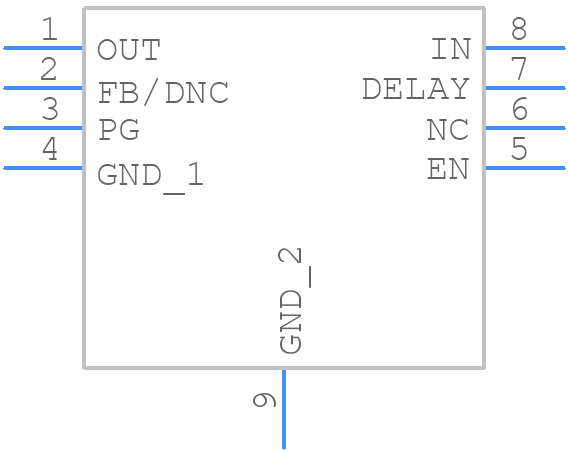

Symbol
TPS7A1601ADGNR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS7A1601ADGNR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGN0008A_2020
click to zoom
3D Models
TPS7A1601ADGNR - Texas Instruments - 3D model - Small Outline Packages - DGN0008A_2020
click to zoom

TPS7A1601ADGNR Details

  • Manufacturer Part Number:

    TPS7A1601ADGNR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.5 V

  • Dropout Voltage1-Nom:

    0.06 V

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    3 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.017

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.1 A

  • Output Voltage1-Max:

    18.5 V

  • Output Voltage1-Min:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    3 mm

TPS7A1601ADGNR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS7A1601ADGNR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor has a low equivalent series resistance (ESR) and a high ripple current rating. It's also recommended to add a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
  • The TPS7A1601ADGNR can handle input voltages up to 42V, but it's recommended to operate within the specified input voltage range of 4.5V to 36V for optimal performance and reliability.
  • The TPS7A1601ADGNR is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at higher temperatures to ensure reliability. Consult the datasheet for thermal derating guidelines.
  • The output voltage of the TPS7A1601ADGNR is adjustable using the feedback resistors R1 and R2. The output voltage can be calculated using the formula: Vout = 1.25V x (1 + R2/R1).
