A good PCB layout for the TPS7A1633DRBR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the stability of the TPS7A1633DRBR output voltage, it's essential to use the recommended output capacitor value and type, and to place it close to the device. Additionally, the input voltage should be stable and within the recommended range, and the device should be operated within its recommended operating conditions.
The TPS7A1633DRBR can handle input voltages up to 18V, but it's recommended to operate the device within the recommended input voltage range of 2.7V to 15V for optimal performance and reliability.
The TPS7A1633DRBR is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at high temperatures to ensure reliable operation. Additionally, the device should be mounted on a heat sink or a thermally conductive PCB to dissipate heat effectively.
To troubleshoot issues with the TPS7A1633DRBR, start by checking the input voltage, output voltage, and output current. Verify that the device is operated within its recommended operating conditions, and check for any signs of overheating or physical damage. Use an oscilloscope to check for any oscillations or noise on the output voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS7A1633DRBR Overview

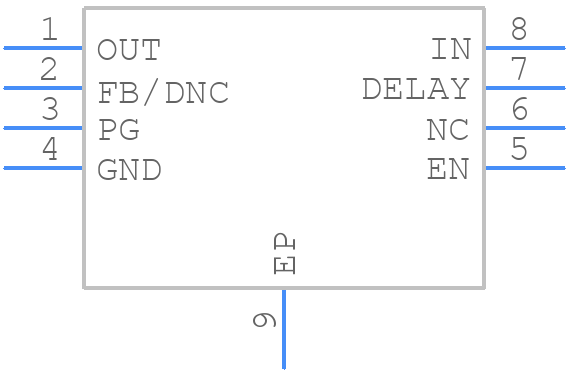

Use the download button to access the TPS7A1633DRBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS7A,
or try a keyword search, such as Linear Regulator ICs
