Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
To optimize performance, consider the specific requirements of your application, such as input voltage, output voltage, and current requirements. Use the datasheet to select the optimal component values and follow the recommended layout guidelines. You can also use TI's WEBENCH online design tool to simulate and optimize your design.
The TPS7A3501DRVR has a thermal pad that must be connected to a solid ground plane to ensure proper heat dissipation. The device can operate up to 125°C, but excessive temperatures can affect performance and reliability. Ensure good airflow and consider using a heat sink if necessary.
Start by checking the input voltage, output voltage, and current draw. Verify that the device is properly soldered and that the PCB layout follows the recommended guidelines. Use an oscilloscope to check for noise, oscillations, or other anomalies. Consult the datasheet and application notes for troubleshooting guides and FAQs.
Yes, the TPS7A3501DRVR is a high-frequency device and can be susceptible to electromagnetic interference (EMI). Follow proper PCB design guidelines, use shielding and filtering as necessary, and ensure that the device is properly decoupled from the power supply and load.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS7A3501DRVR Overview

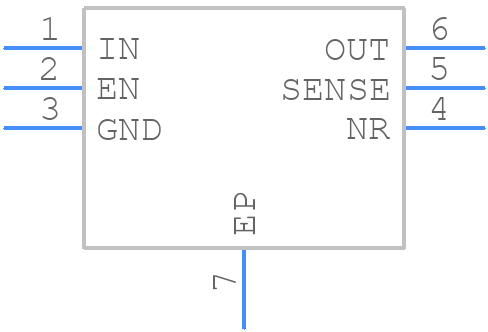

Use the download button to access the TPS7A3501DRVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS7A,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
