SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Regulator Type:
ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max:
1.1 mm
Surface Mount:
YES
Technology:
BICMOS
Terminal Finish:
Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Voltage Tolerance-Max:
2.5%
Width:
3 mm
TPS7A4201DGNR Frequently Asked Questions (FAQs)
A good PCB layout for the TPS7A4201DGNR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the stability of the TPS7A4201DGNR output voltage, it's essential to use the recommended output capacitor value and type, and to ensure that the output capacitor is placed close to the device. Additionally, the input voltage should be stable and within the recommended range, and the device should be operated within its recommended operating conditions.
The TPS7A4201DGNR can handle input voltages up to 18V, but it's recommended to operate the device within the recommended input voltage range of 4.5V to 15V for optimal performance and reliability.
The TPS7A4201DGNR is rated for operation up to 125°C, but it's recommended to derate the device's performance at high temperatures. It's essential to ensure that the device is operated within its recommended operating conditions and that the junction temperature is kept below 150°C.
The power dissipation of the TPS7A4201DGNR can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. It's essential to ensure that the device is operated within its recommended power dissipation rating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS7A4201DGNR Overview

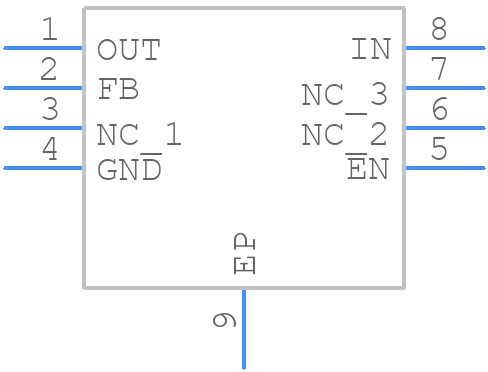

Use the download button to access the TPS7A4201DGNR schematic symbol, PCB footprint, and 3D model.
