A good PCB layout for the TPS7A6950QDRQ1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a star-ground configuration and to avoid routing sensitive analog signals near the switching node.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure to use a sufficient output capacitor with a low equivalent series resistance (ESR) and a high-quality input capacitor. Also, avoid over-compensating the device, as this can lead to oscillations.
The TPS7A6950QDRQ1 can handle input voltages up to 18V, but it's recommended to operate within the specified input voltage range of 4.5V to 15V for optimal performance and reliability.
The TPS7A6950QDRQ1 is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure proper heat sinking and follow the recommended thermal design guidelines to prevent overheating.
To troubleshoot issues with the TPS7A6950QDRQ1, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout and component values against the recommended design guidelines. Use an oscilloscope to inspect the output voltage and switching node waveforms. If issues persist, consult the datasheet and application notes or contact Texas Instruments' support team for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS7A6950QDRQ1 Overview

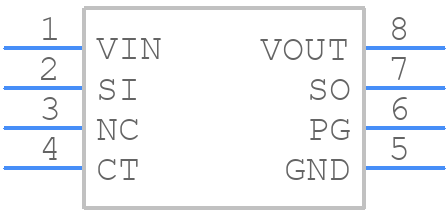

Use the download button to access the TPS7A6950QDRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS7A,
or try a keyword search, such as Linear Regulator ICs
