TPS7A7200QRGWREP - Texas Instruments

Description: 2-A, Fast-Transient, Low-Dropout Voltage Regulator, TPS7A7200-EP

Download TPS7A7200QRGWREP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

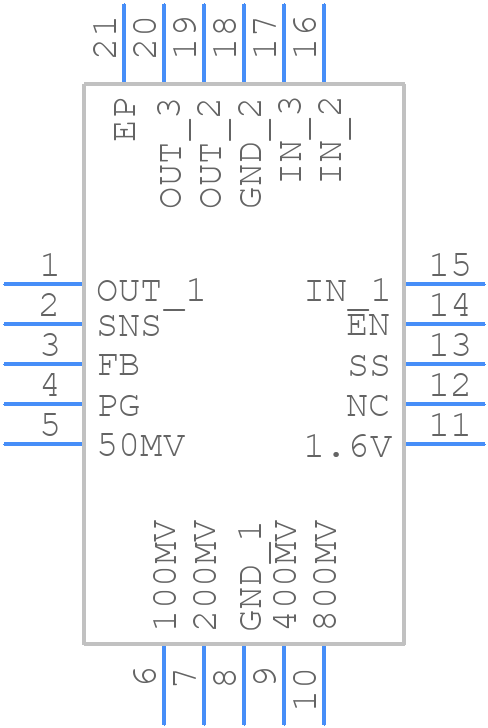

TPS7A7200QRGWREP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS7A7200QRGWREP - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGW0020A
click to zoom
3D Models
TPS7A7200QRGWREP - Texas Instruments - 3D model - Quad Flat No-Lead - RGW0020A
click to zoom

TPS7A7200QRGWREP Details

  • Manufacturer Part Number:

    TPS7A7200QRGWREP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.47 V

  • Dropout Voltage1-Nom:

    0.18 V

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    1.43 V

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Line Regulation-Max (%/V):

    0.01

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    20

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    2 A

  • Output Voltage1-Max:

    5 V

  • Output Voltage1-Min:

    0.9 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.20SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1.5%

  • Width:

    5 mm

TPS7A7200QRGWREP Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS7A7200QRGWREP involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. TI provides a recommended PCB layout in the datasheet and application notes.
  • To ensure stability, follow the recommended component values and PCB layout, and make sure the output capacitor has a low equivalent series resistance (ESR). Additionally, adding a small ceramic capacitor (e.g., 10nF) between the output and ground can help improve stability.
  • The TPS7A7200QRGWREP has an absolute maximum input voltage rating of 18V. However, the recommended maximum input voltage is 15V to ensure reliable operation and minimize the risk of damage.
  • The TPS7A7200QRGWREP is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and consider the thermal design and heat dissipation in your application.
  • The output voltage of the TPS7A7200QRGWREP is determined by the resistor divider network (R1 and R2) connected to the FB pin. Use the formula: Vout = 0.8V x (1 + R2/R1) to calculate the output voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS7A7200QRGWREP Overview

Use the download button to access the TPS7A7200QRGWREP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS7A, or try a keyword search, such as Linear Regulator ICs
