Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for LDO regulator layout, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
The output voltage tolerance of the TPS7A8301ARGWR is specified as ±2% over the operating temperature range. To calculate the output voltage tolerance, multiply the nominal output voltage by the tolerance percentage. For example, for a 3.3V output, the tolerance would be ±66mV (3.3V x 0.02).
The absolute maximum input voltage rating for the TPS7A8301ARGWR is 12V. However, it's recommended to operate the device within the recommended input voltage range of 3.5V to 10V to ensure optimal performance and reliability.
The TPS7A8301ARGWR is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's recommended to follow the thermal design guidelines in the datasheet and to consider using thermal management techniques, such as heat sinks or thermal interfaces, to keep the device within its recommended operating temperature range.
To ensure stability, follow the recommended output capacitor selection guidelines in the datasheet, and use a capacitor with a low equivalent series resistance (ESR). Additionally, ensure that the input capacitor is properly sized and placed close to the device. Finally, avoid using long, thin traces or wires that can introduce inductance and cause oscillation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS7A8301ARGWR Overview

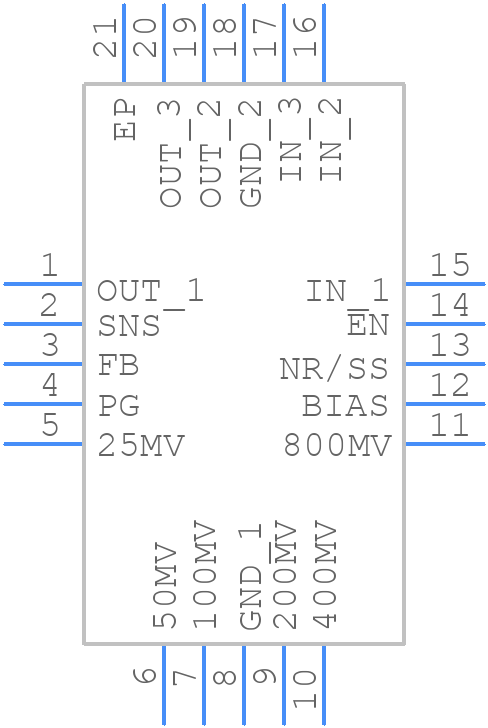

Use the download button to access the TPS7A8301ARGWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS7A,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
