TPS7A8500ARGRR - Texas Instruments

Description: LDO Voltage Regulators High-Current (4A), High-Accuracy (0.75%), Low-Noise (4.4uVRMS), LDO Voltage Regulator 20-VQFN -40 to 125

Download TPS7A8500ARGRR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

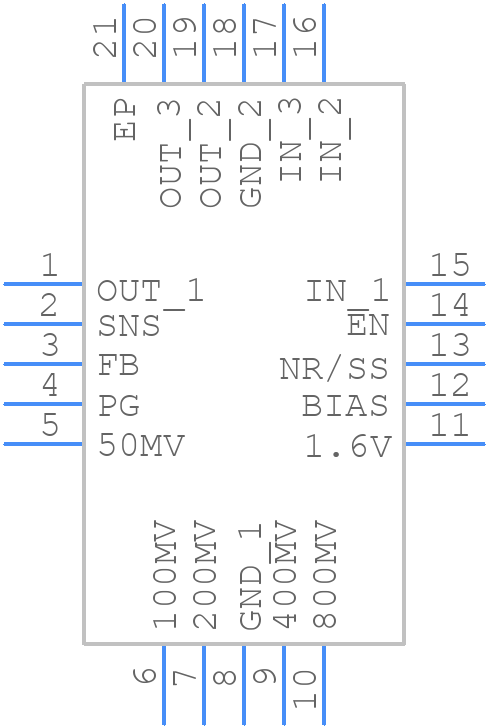

TPS7A8500ARGRR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS7A8500ARGRR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGR (S-PVQFN-N20)_1
click to zoom
3D Models
TPS7A8500ARGRR - Texas Instruments - 3D model - Quad Flat No-Lead - RGR (S-PVQFN-N20)_1
click to zoom

TPS7A8500ARGRR Details

  • Manufacturer Part Number:

    TPS7A8500ARGRR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-06-21

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.6 V

  • Dropout Voltage1-Nom:

    0.15 V

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    1.1 V

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    3.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    20

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    4 A

  • Output Voltage1-Max:

    5.1 V

  • Output Voltage1-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    0.75%

  • Width:

    3.5 mm

TPS7A8500ARGRR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS7A8500ARGRR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. TI provides a recommended PCB layout in the datasheet and application notes.
  • To ensure stability, follow the recommended component values and PCB layout, and make sure the output capacitor has a low equivalent series resistance (ESR). Additionally, adding a small ceramic capacitor (e.g., 10nF) between the output and ground can help improve stability.
  • The TPS7A8500ARGRR can handle input voltages up to 18V, but it's recommended to operate within the specified input voltage range (4.75V to 18V) to ensure optimal performance and reliability.
  • The TPS7A8500ARGRR is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. Ensure proper thermal management and consider derating the device's performance at high temperatures.
  • The output voltage of the TPS7A8500ARGRR is determined by the resistor divider network (R1 and R2) connected to the FB pin. Use the formula: Vout = 0.8V x (1 + R2/R1) to calculate the output voltage.
