A good PCB layout for the TPS7A9001DSKR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. TI provides a recommended PCB layout in the datasheet and application notes.
To ensure stability with the TPS7A9001DSKR, it's essential to follow the recommended output capacitor selection, use a minimum output capacitance of 10uF, and ensure the output capacitor's ESR is within the recommended range. Additionally, the input capacitor should be placed close to the device and have a low ESR.
The TPS7A9001DSKR can handle input voltages up to 18V, but it's recommended to operate within the specified input voltage range of 2.7V to 15V for optimal performance and reliability.
The TPS7A9001DSKR is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure proper heat sinking and follow the recommended thermal design guidelines.
When troubleshooting issues with the TPS7A9001DSKR, start by verifying the input voltage, output voltage, and current. Check the PCB layout, component selection, and soldering quality. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. Consult the datasheet, application notes, and TI's support resources for guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS7A9001DSKR Overview

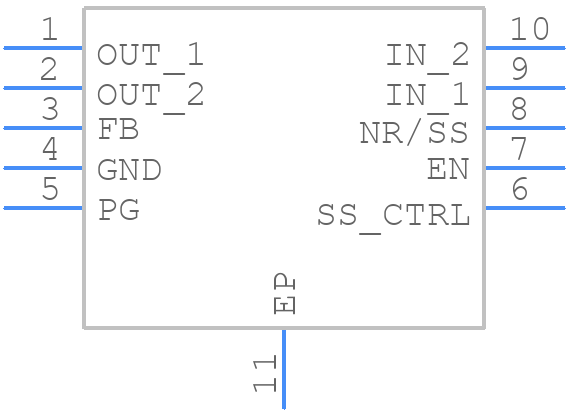

Use the download button to access the TPS7A9001DSKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS7A,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
