TPS7A9001DSKT - Texas Instruments

Description: TEXAS INSTRUMENTS - TPS7A9001DSKT - LDO, ADJ, 0.8V TO 5.7V, 0.5A, SON-10

Download TPS7A9001DSKT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

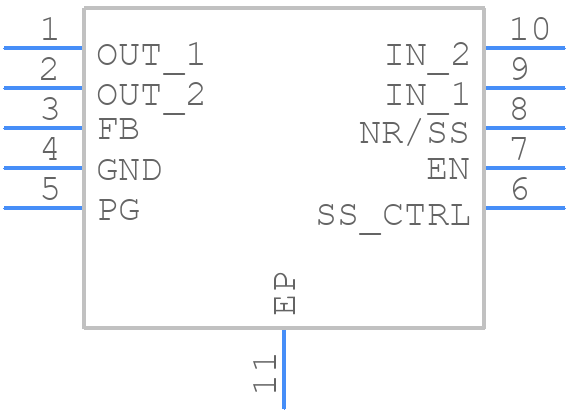

TPS7A9001DSKT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS7A9001DSKT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSK(S-PDSO-N10)
click to zoom
3D Models
TPS7A9001DSKT - Texas Instruments - 3D model - Small Outline No-lead - DSK(S-PDSO-N10)
click to zoom

TPS7A9001DSKT Details

  • Manufacturer Part Number:

    TPS7A9001DSKT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.2 V

  • Dropout Voltage1-Nom:

    0.075 V

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    1.4 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    2.5 mm

  • Line Regulation-Max (%/V):

    0.005

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    5.7 V

  • Output Voltage1-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1%

  • Width:

    2.5 mm

TPS7A9001DSKT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS7A9001DSKT involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. TI provides a recommended PCB layout in the datasheet and application notes.
  • The choice of input and output capacitors depends on the specific application requirements. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The capacitor selection guide in the datasheet can help with the selection process.
  • The TPS7A9001DSKT is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to consider the thermal design and heat dissipation in the system to ensure reliable operation.
  • Yes, the TPS7A9001DSKT is suitable for high-reliability and aerospace applications. TI provides a range of documentation and support for these applications, including a radiation report and a military temperature range option.
  • To troubleshoot issues with the TPS7A9001DSKT, start by checking the input voltage, output voltage, and current. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
