Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors close to the device.
To ensure stability, follow the recommended compensation network in the datasheet, and make sure to choose the correct output capacitor value and ESR. Additionally, ensure that the input and output capacitors are properly decoupled, and the device is operated within its recommended operating conditions.
The maximum input voltage rating for the TPS7B8225QDGNRQ1 is 5.5V, but it's recommended to operate the device within its recommended operating conditions to ensure reliability and performance. Exceeding the maximum input voltage can cause damage to the device.
The TPS7B8225QDGNRQ1 is rated for operation up to 125°C, but it's recommended to derate the device's performance and ensure proper thermal management to prevent overheating. Consult the datasheet for thermal resistance and junction-to-ambient temperature ratings.
Use a oscilloscope to measure the output voltage and input voltage ripple, and check for any signs of oscillation or instability. Verify that the device is operated within its recommended operating conditions, and check the PCB layout for any potential issues. Consult the datasheet and application notes for troubleshooting guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS7B8225QDGNRQ1 Overview

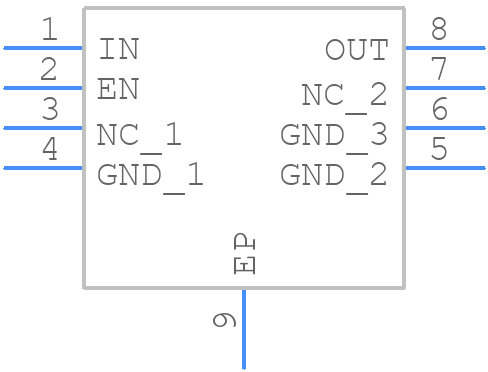

Use the download button to access the TPS7B8225QDGNRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS7B,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
