Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for low-noise, high-precision voltage regulator designs, such as separating analog and digital grounds, using a solid ground plane, and minimizing trace lengths and widths.
To ensure stability, follow the recommended capacitor values and types in the datasheet, and make sure the output capacitor has a low equivalent series resistance (ESR). Additionally, ensure the input capacitor is properly sized and placed close to the device. If oscillations occur, try adding a small ceramic capacitor (e.g., 10nF) between the output and ground.
While the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the device.
The TPS7B8233EPWPRQ1 is rated for operation up to 125°C, but its performance and accuracy may degrade at higher temperatures. If your application requires operation above 125°C, consider using a different device or implementing additional cooling measures.
Power dissipation can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. Make sure to consider the device's thermal resistance and maximum junction temperature when calculating power dissipation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS7B8233EPWPRQ1 Overview

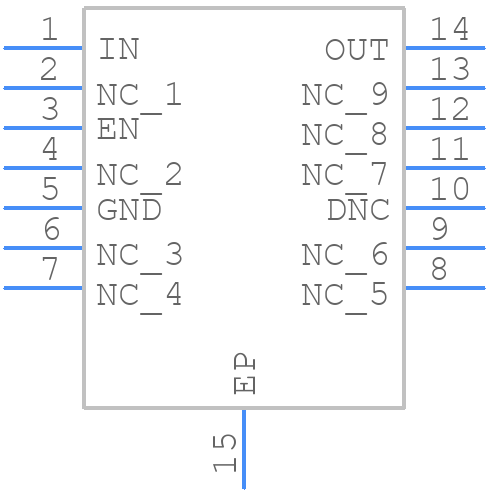

Use the download button to access the TPS7B8233EPWPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS7B,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
