Texas Instruments provides a recommended PCB layout in the TPS7B8633 datasheet, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
To ensure stability, follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, consider using a compensation network, such as a series RC network, to stabilize the output voltage. Texas Instruments also provides a stability calculator tool to help with this process.
The TPS7B8633BQDDARQ1 has an absolute maximum input voltage rating of 18V. However, the recommended operating input voltage range is 4.5V to 15V. Applying voltages above the recommended range may affect the device's performance and reliability.
The TPS7B8633BQDDARQ1 has a junction temperature rating of 150°C. While it can operate in high-temperature environments, it's essential to ensure that the device's thermal design and PCB layout are optimized to dissipate heat effectively. Consult the datasheet and Texas Instruments' thermal design guidelines for more information.
The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. Texas Instruments provides guidelines for output capacitor selection in the datasheet, including a recommended capacitor value and ESR range. Additionally, consider using a low-ESR ceramic capacitor or a tantalum capacitor to minimize output voltage ripple.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS7B8633BQDDARQ1 Overview

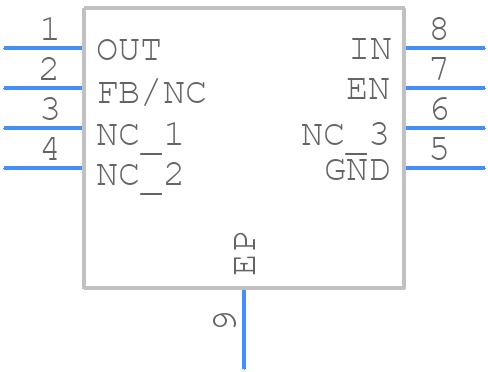

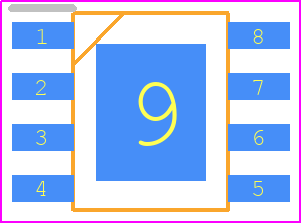

Use the download button to access the TPS7B8633BQDDARQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS7B,
or try a keyword search, such as Linear Regulator ICs
