TPS7B8650QKVURQ1R2 - Texas Instruments

Description: Linear Voltage Regulator IC Positive Fixed 1 Output 500mA TO-252-5

Download TPS7B8650QKVURQ1R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

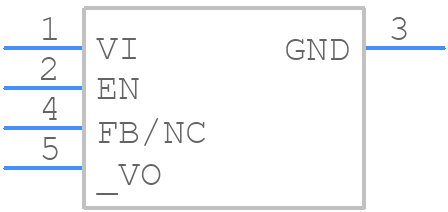

TPS7B8650QKVURQ1R2 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

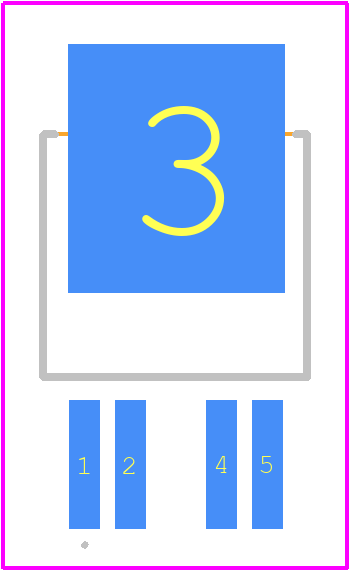

TPS7B8650QKVURQ1R2 - Texas Instruments PCB footprint - Other - Other - TPS7B8650QKVURQ1R2-2
click to zoom
3D Models
TPS7B8650QKVURQ1R2 - Texas Instruments - 3D model - Other - TPS7B8650QKVURQ1R2-2
click to zoom

TPS7B8650QKVURQ1R2 Details

  • Manufacturer Part Number:

    TPS7B8650QKVURQ1R2

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TO-252-5

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.575 V

  • Dropout Voltage1-Nom:

    0.37 V

  • Input Voltage Absolute-Max:

    42 V

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    6 V

  • JESD-30 Code:

    R-PSSO-G4

  • JESD-609 Code:

    e3

  • Length:

    6.6 mm

  • Line Regulation-Max:

    0.01%

  • Load Regulation-Max(%):

    0.0225%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    5.0575 V

  • Output Voltage1-Min:

    4.9425 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TO-252

  • Package Equivalence Code:

    SMSIP5H,.37,50TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.52 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.14 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1.15%

  • Width:

    6.095 mm

TPS7B8650QKVURQ1R2 Frequently Asked Questions (FAQs)

  • The maximum input voltage is 5.5V, as specified in the datasheet. However, it's recommended to keep the input voltage below 5V to ensure reliable operation and to prevent damage to the device.
  • To ensure stability, it's essential to follow the recommended layout and component selection guidelines in the datasheet. This includes using a suitable output capacitor with a minimum capacitance of 10uF and an ESR of 0.1Ω or less, as well as placing the capacitor close to the output pin.
  • The TPS7B8650QKVURQ1R2 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and to consider the thermal design of the system to ensure reliable operation.
  • The power dissipation of the TPS7B8650QKVURQ1R2 can be calculated using the formula: Pd = (Vin - Vout) x Iout. Where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. It's essential to consider the power dissipation to ensure the device operates within its recommended operating conditions.
  • The TPS7B8650QKVURQ1R2 is an AEC-Q100 qualified device, which means it meets the requirements for automotive applications. However, it's essential to review the device's specifications and to ensure it meets the specific requirements of the application, including the operating temperature range and electromagnetic compatibility (EMC) requirements.
