Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
The selection of input and output capacitors depends on the specific application requirements, such as the input voltage range, output voltage, and output current. TI recommends using X5R or X7R ceramic capacitors with a voltage rating of at least 1.5 times the maximum input voltage. The output capacitor should be selected based on the output voltage and current requirements, and should have a low ESR to minimize voltage ripple.
The TPS92314AD/NOPB has an operating junction temperature range of -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. TI recommends following the thermal design guidelines in the datasheet to ensure reliable operation.
To ensure stability, follow the recommended PCB layout and component selection guidelines in the datasheet. Additionally, make sure to decouple the input and output pins with suitable capacitors, and use a stable input voltage source. TI also recommends using a soft-start circuit to prevent inrush currents during startup.
The TPS92314AD/NOPB has a maximum output current capability of 2A, but this can be limited by the thermal design of the system and the input voltage range. TI recommends following the thermal design guidelines in the datasheet to ensure reliable operation at high output currents.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS92314AD/NOPB Overview

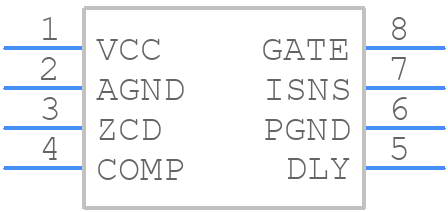

Use the download button to access the TPS92314AD/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS92,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
