Texas Instruments provides a recommended PCB layout in the TPS92411PDDA evaluation module documentation, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
To ensure stable output voltage regulation, it's essential to follow the recommended input capacitor selection and placement guidelines, as well as to use a suitable output capacitor with low ESR. Additionally, the TPS92411PDDA has an internal soft-start feature that helps to reduce inrush current and prevent output voltage overshoot during startup.
While the datasheet specifies an operating junction temperature range of -40°C to 150°C, the maximum ambient temperature range for reliable operation depends on the specific application and thermal design. As a general guideline, Texas Instruments recommends keeping the ambient temperature below 85°C for most applications.
Yes, the TPS92411PDDA is qualified for automotive and high-reliability applications, meeting the requirements of AEC-Q100 and IATF 16949. However, it's essential to follow the recommended design and manufacturing guidelines to ensure the device meets the specific application requirements.
To troubleshoot output voltage errors or instability issues, start by verifying the input voltage, output voltage, and current levels using an oscilloscope or multimeter. Check for proper component selection, PCB layout, and thermal design. Also, ensure that the device is properly configured and that the enable pin is correctly driven. If issues persist, consult the Texas Instruments support resources or contact their technical support team.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS92411PDDA Overview

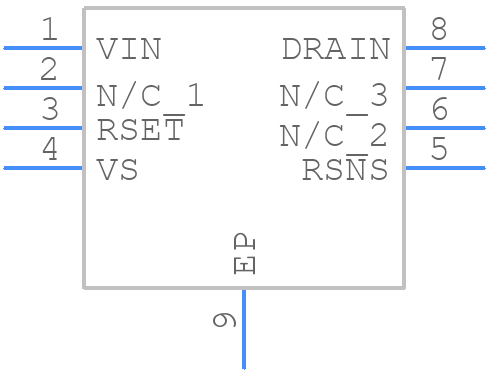

Use the download button to access the TPS92411PDDA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS92,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
