SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.1 mm
Supply Current-Max:
1.5 mA
Supply Voltage-Max:
65 V
Supply Voltage-Min:
5.5 V
Supply Voltage-Nom:
40 V
Supply Voltage1-Max:
65 V
Supply Voltage1-Min:
5.5 V
Supply Voltage1-Nom:
40 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
fmax-Min:
2 MHz
TPS92515HVDGQT Frequently Asked Questions (FAQs)
The maximum input voltage that can be applied to the TPS92515HVDGQT is 60V, but it's recommended to operate within the specified input voltage range of 12V to 42V for optimal performance and reliability.
To ensure the TPS92515HVDGQT operates within the specified junction temperature range of -40°C to 150°C, provide adequate heat sinking, use a thermally conductive material, and avoid overheating the device.
The EN (enable) pin is used to enable or disable the TPS92515HVDGQT. To use it, connect the EN pin to a logic-level input signal (e.g., from a microcontroller). A high logic level (>2.5V) enables the device, while a low logic level (<0.8V) disables it.
To select the correct output voltage, refer to the datasheet's output voltage selection table. Choose the desired output voltage by connecting the VSENSE pin to the corresponding resistor divider network, as described in the datasheet.
For optimal performance, follow the recommended layout and placement guidelines in the datasheet, including keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS92515HVDGQT Overview

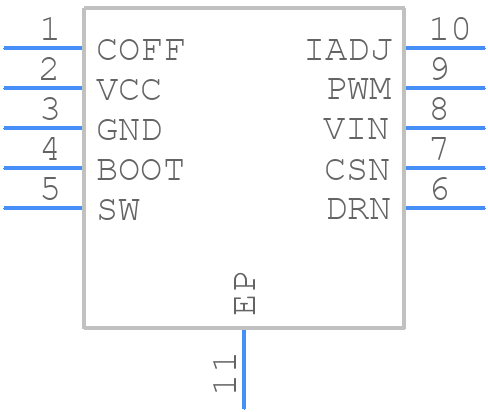

Use the download button to access the TPS92515HVDGQT schematic symbol, PCB footprint, and 3D model.
