TPS92515HVQDGQRQ1 - Texas Instruments

Description: 65-V automotive 2-A shunt-PWM dimmable LED driver with Integrated NFET and current calibration

Download TPS92515HVQDGQRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

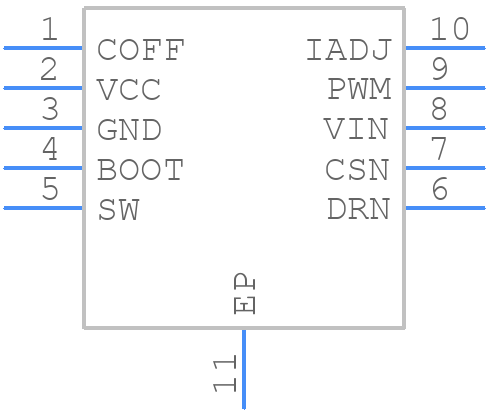

Symbol
TPS92515HVQDGQRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS92515HVQDGQRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGQ (S-PDSO-G10)_1
click to zoom
3D Models
TPS92515HVQDGQRQ1 - Texas Instruments - 3D model - Small Outline Packages - DGQ (S-PDSO-G10)_1
click to zoom

TPS92515HVQDGQRQ1 Details

  • Manufacturer Part Number:

    TPS92515HVQDGQRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVSSOP-10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-05-05

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Multiplexed Display Capability:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Segments:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1.5 mA

  • Supply Voltage-Max:

    65 V

  • Supply Voltage-Min:

    5.5 V

  • Supply Voltage-Nom:

    40 V

  • Supply Voltage1-Max:

    65 V

  • Supply Voltage1-Min:

    5.5 V

  • Supply Voltage1-Nom:

    40 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • fmax-Min:

    2 MHz

TPS92515HVQDGQRQ1 Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS92515HVQDGQRQ1 is 60V, as specified in the datasheet. However, it's recommended to derate the input voltage to ensure reliable operation and to prevent damage to the device.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines provided in the datasheet. Additionally, the output capacitor selection and the input filter design play a crucial role in maintaining output voltage stability.
  • The maximum output current that the TPS92515HVQDGQRQ1 can deliver is 1.5A, as specified in the datasheet. However, the actual output current may be limited by the input voltage, output voltage, and thermal considerations.
  • The TPS92515HVQDGQRQ1 has a built-in overcurrent protection feature that limits the output current to prevent damage to the device. The overcurrent threshold can be adjusted by connecting a resistor between the OCSET pin and the output voltage. The recommended value of the resistor can be calculated using the formula provided in the datasheet.
  • The EN (enable) pin is used to enable or disable the device. When the EN pin is pulled high, the device is enabled, and when it's pulled low, the device is disabled. This pin can be used to implement power sequencing or to turn off the device when not in use.
