SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
1.1 mm
Supply Current-Max:
1.5 mA
Supply Voltage-Max:
42 V
Supply Voltage-Min:
5.5 V
Supply Voltage-Nom:
40 V
Supply Voltage1-Max:
42 V
Supply Voltage1-Min:
5.5 V
Supply Voltage1-Nom:
40 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
fmax-Min:
2 MHz
TPS92515QDGQRQ1 Frequently Asked Questions (FAQs)
The maximum input voltage that can be applied to the TPS92515QDGQRQ1 is 40V, but it's recommended to operate within the recommended input voltage range of 12V to 36V for optimal performance and reliability.
To ensure the stability of the output voltage, it's essential to follow the recommended layout guidelines, use a suitable output capacitor, and ensure that the input voltage is within the recommended range. Additionally, the output voltage can be adjusted using the FB pin, and the output voltage stability can be improved by adding a capacitor in parallel with the output capacitor.
The maximum output current that the TPS92515QDGQRQ1 can deliver is 1.5A, but it's recommended to operate within the recommended output current range of 0.5A to 1.2A for optimal performance and reliability.
To protect the TPS92515QDGQRQ1 from overheating, it's essential to ensure good thermal design, use a suitable heat sink, and operate within the recommended temperature range of -40°C to 125°C. Additionally, the device has built-in thermal protection, which will shut down the device if the junction temperature exceeds 150°C.
Yes, the TPS92515QDGQRQ1 is suitable for high-reliability applications, such as automotive and industrial systems, due to its high reliability, low dropout voltage, and high efficiency. However, it's essential to follow the recommended design guidelines and operate within the recommended specifications to ensure optimal performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS92515QDGQRQ1 Overview

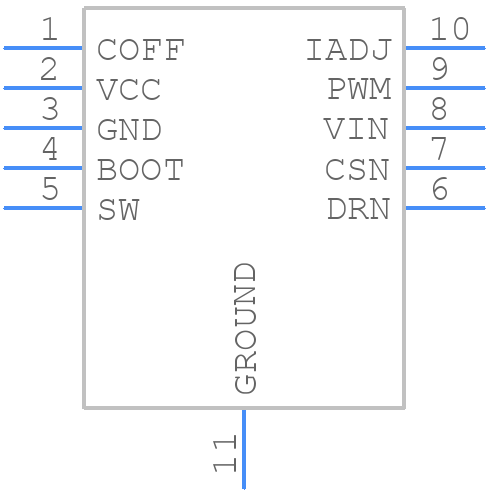

Use the download button to access the TPS92515QDGQRQ1 schematic symbol, PCB footprint, and 3D model.
