A good PCB layout for the TPS92518HVQPWPRQ1 should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure that the thermal pad is connected to a solid ground plane. Use a 2-3 layer PCB with a thick copper layer (at least 2 oz) to dissipate heat effectively. Keep the high-current paths short and wide, and avoid routing high-current traces near sensitive analog signals.
Choose input capacitors with a voltage rating that exceeds the maximum input voltage, and a capacitance value that meets the recommended minimum capacitance value specified in the datasheet. Consider using low-ESR capacitors (e.g., X5R or X7R dielectrics) to minimize power losses and ensure stable operation. Ensure the capacitors are placed close to the device's input pins to minimize parasitic inductance.
The recommended output capacitor value depends on the specific application requirements. A general guideline is to use a capacitor with a capacitance value between 10uF to 22uF, and a voltage rating that exceeds the output voltage. Choose a low-ESR capacitor (e.g., X5R or X7R dielectrics) to minimize power losses and ensure stable operation. Place the output capacitor close to the device's output pins to minimize parasitic inductance.
To ensure the TPS92518HVQPWPRQ1 operates within its SOA, monitor the device's junction temperature (TJ) and ensure it remains below the maximum rated value. Calculate the device's power dissipation (PD) based on the input voltage, output voltage, and output current. Verify that the PD is within the recommended maximum value. Use thermal design and layout techniques to minimize the device's junction temperature.
To minimize EMI, use a pi-filter (L-C-L) or a common-mode choke at the input stage to filter out high-frequency noise. Ensure the filter components are placed close to the device's input pins to minimize parasitic inductance. Use a shielded cable or a twisted pair for the output stage to reduce radiated emissions. Follow good PCB layout practices, such as separating analog and digital grounds, to minimize noise coupling.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS92518HVQPWPRQ1 Overview

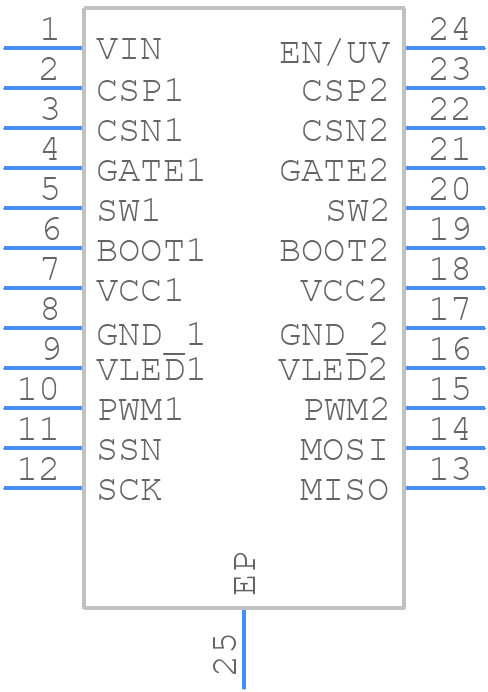

Use the download button to access the TPS92518HVQPWPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS92,
or try a keyword search, such as Display Drivers
