SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.1 mm
Supply Current-Max:
1.6 mA
Supply Voltage-Max:
42 V
Supply Voltage-Min:
6.5 V
Supply Voltage-Nom:
12 V
Supply Voltage1-Max:
42 V
Supply Voltage1-Min:
6.5 V
Supply Voltage1-Nom:
12 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPS92561DGN Frequently Asked Questions (FAQs)
TI recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to minimize thermal resistance. A minimum of 2 oz copper thickness is recommended for the top layer.
To ensure stable output voltage regulation, it's essential to decouple the input voltage with a capacitor (e.g., 10uF) and use a low-ESR output capacitor (e.g., 22uF). Additionally, ensure the input voltage is within the recommended range (4.5V to 18V) and the output voltage is set correctly using the FB pin.
The TPS92561DGN can deliver up to 2A of output current, but this is dependent on the input voltage, output voltage, and thermal conditions. It's essential to check the thermal derating curves in the datasheet to ensure the device can handle the required output current.
The TPS92561DGN has a built-in OCP and SCP feature. To implement OCP, connect a resistor (e.g., 1kΩ) between the OCP pin and GND. For SCP, connect a resistor (e.g., 2kΩ) between the SCP pin and GND. The device will limit the output current to 2A during an overcurrent event and shut down during a short-circuit event.
The EN (enable) pin is used to turn the device on or off. When the EN pin is pulled high (above 1.4V), the device is enabled, and when it's pulled low (below 0.4V), the device is disabled. This pin can be used to implement power sequencing or to turn off the device during shutdown or low-power modes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS92561DGN Overview

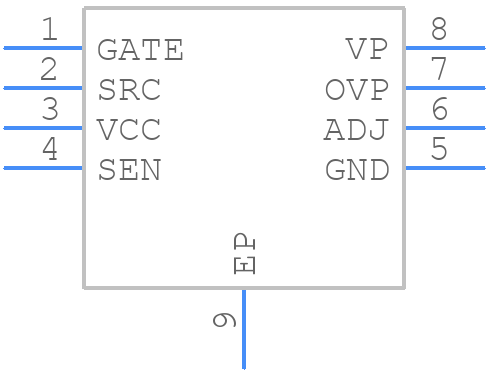

Use the download button to access the TPS92561DGN schematic symbol, PCB footprint, and 3D model.
