TPS92602QPWPRQ1 - Texas Instruments

Description: Automotive 2 channel High side current sense switching mode LED driver

Download TPS92602QPWPRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

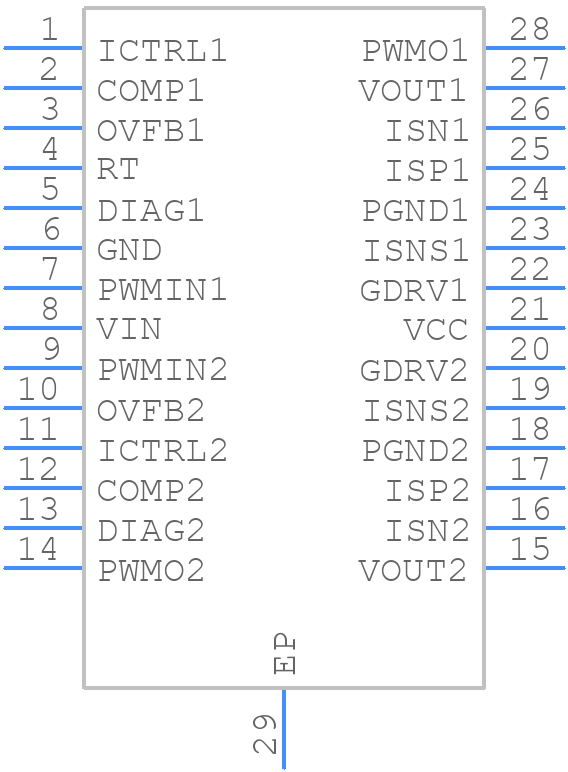

Symbol
TPS92602QPWPRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS92602QPWPRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0028C
click to zoom
3D Models
TPS92602QPWPRQ1 - Texas Instruments - 3D model - Small Outline Packages - PWP0028C
click to zoom

TPS92602QPWPRQ1 Details

  • Manufacturer Part Number:

    TPS92602QPWPRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    3

  • Multiplexed Display Capability:

    NO

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Segments:

    10

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    12 mA

  • Supply Voltage-Max:

    40 V

  • Supply Voltage-Min:

    4 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    40 V

  • Supply Voltage1-Min:

    4 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • fmax-Min:

    0.6 MHz

TPS92602QPWPRQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS92602QPWPRQ1 should include a solid ground plane, a separate power plane for the input voltage, and a thermal relief pattern around the device to facilitate heat dissipation. Additionally, the device should be placed near a thermal pad or heat sink to improve thermal performance.
  • The input capacitor should be selected based on the input voltage ripple requirement, output voltage, and the device's input capacitance requirement. A ceramic capacitor with a value between 4.7uF to 10uF is recommended. The capacitor should also have a voltage rating that is at least 1.5 times the input voltage.
  • The TPS92602QPWPRQ1 can operate in ambient temperatures up to 85°C. However, the device's junction temperature should not exceed 125°C to ensure reliable operation.
  • The TPS92602QPWPRQ1 has a power-good output that can be used to monitor the output voltage. The device should be powered up and down slowly to prevent voltage spikes and ensure proper operation. A soft-start circuit can be used to control the power-up sequence.
  • The output capacitor should be selected based on the output voltage ripple requirement, output current, and the device's output capacitance requirement. A ceramic capacitor with a value between 4.7uF to 10uF is recommended. The capacitor should also have a voltage rating that is at least 1.5 times the output voltage.
