TPS92611QDGNRQ1 - Texas Instruments

Description: Automotive Single-Channel LED Driver

Download TPS92611QDGNRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

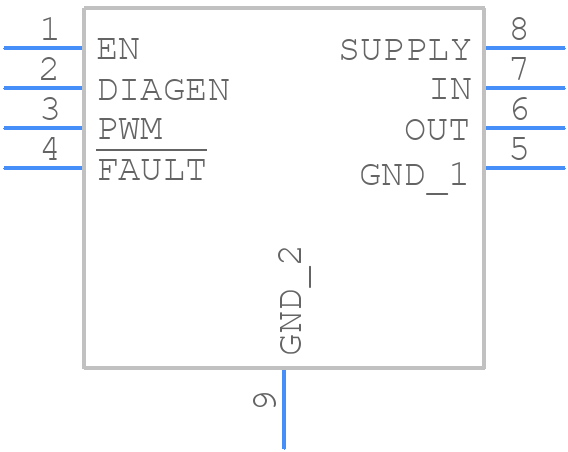

Symbol
TPS92611QDGNRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS92611QDGNRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - TPS92611QDGNRQ1-1
click to zoom
3D Models
TPS92611QDGNRQ1 - Texas Instruments - 3D model - Small Outline Packages - TPS92611QDGNRQ1-1
click to zoom

TPS92611QDGNRQ1 Details

  • Manufacturer Part Number:

    TPS92611QDGNRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-01-25

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Multiplexed Display Capability:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Segments:

    3

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    40 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS92611QDGNRQ1 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Place the device near a thermal pad or a heat sink to improve heat dissipation.
  • Use a heat sink or thermal pad, ensure good airflow, and consider derating the output current at high temperatures. Also, ensure the device is soldered correctly to the PCB to maintain good thermal conductivity.
  • The maximum capacitive load is not explicitly stated in the datasheet, but as a general rule, it's recommended to limit the capacitive load to 10nF or less to ensure stability and prevent oscillations.
  • Yes, the TPS92611QDGNRQ1 is suitable for battery-powered devices due to its low quiescent current (IQ) and high efficiency. However, consider the device's shutdown mode and enable pin to minimize power consumption when the device is not in use.
  • Check the PCB layout, soldering, and component placement. Verify the input voltage, output voltage, and current. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS92611QDGNRQ1 Overview

Use the download button to access the TPS92611QDGNRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS92, or try a keyword search, such as Display Drivers
