A good PCB layout for the TPS92640PWPR/NOPB should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour coverage around the device. Avoid routing high-current traces near the device to minimize thermal resistance.
To ensure reliable operation across the entire operating temperature range (-40°C to 125°C), follow the recommended operating conditions, and consider the device's thermal characteristics. Implement proper thermal management, and ensure the device is not exposed to excessive temperatures during operation or storage.
When selecting the output capacitor, consider the capacitance value, equivalent series resistance (ESR), and voltage rating. A capacitor with low ESR and high capacitance (e.g., X5R or X7R dielectric) is recommended. Ensure the capacitor's voltage rating exceeds the output voltage, and follow the recommended output capacitance value range specified in the datasheet.
Optimize inductor selection by considering the inductor's saturation current, DC resistance, and core material. Choose an inductor with a high saturation current rating, low DC resistance, and a core material suitable for high-frequency operation (e.g., ferrite or iron powder). Follow the recommended inductance value range specified in the datasheet.
Critical layout considerations for the input and output capacitors include placing them close to the device, using short and wide traces, and minimizing the loop area to reduce electromagnetic interference (EMI). Ensure the capacitors are placed on the same layer as the device, and use a solid ground plane to reduce noise and improve performance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS92640PWPR/NOPB Overview

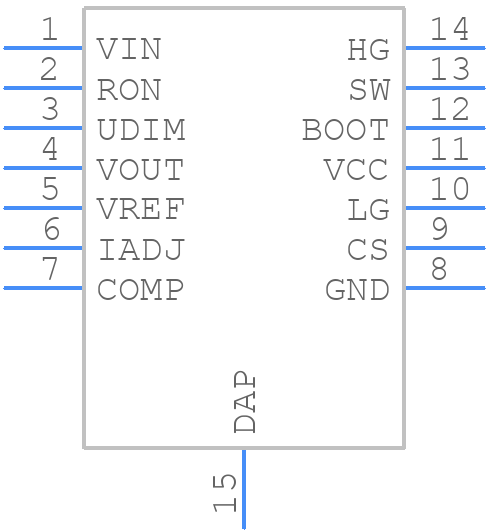

Use the download button to access the TPS92640PWPR/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS92,
or try a keyword search, such as Display Drivers
