A good PCB layout for the TPS92690PWP/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The choice of input and output capacitors for the TPS92690PWP/NOPB depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be at least 10uF for the input capacitor and 22uF for the output capacitor.
The maximum ambient temperature range for the TPS92690PWP/NOPB is -40°C to 125°C. However, the device's performance and reliability may be affected at temperatures above 85°C, so it's recommended to keep the ambient temperature below 85°C for optimal performance.
Yes, the TPS92690PWP/NOPB is suitable for high-reliability applications. It's manufactured using a high-reliability process and is qualified to automotive and industrial standards. However, it's recommended to follow proper design and manufacturing guidelines to ensure the device's reliability in the specific application.
To troubleshoot issues with the TPS92690PWP/NOPB, start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly soldered and that the PCB layout is correct. Check for any signs of overheating, and ensure that the device is operated within its recommended operating conditions. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS92690PWP/NOPB Overview

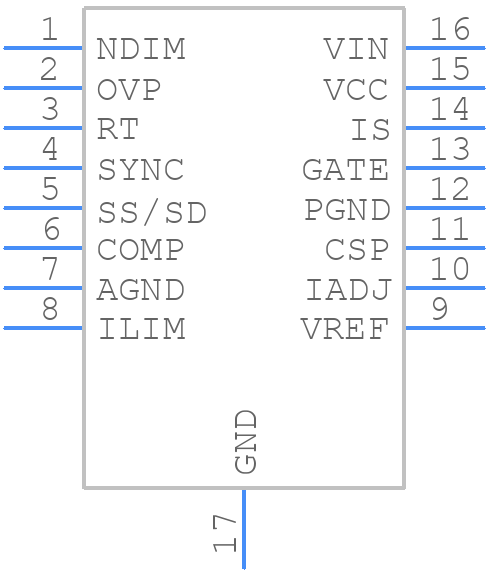

Use the download button to access the TPS92690PWP/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS92,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
