TPS92690PWPR/NOPB - Texas Instruments

Description: N-Channel Controller for Dimmable LED Drives with Low-Side Current Sense

Download TPS92690PWPR/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

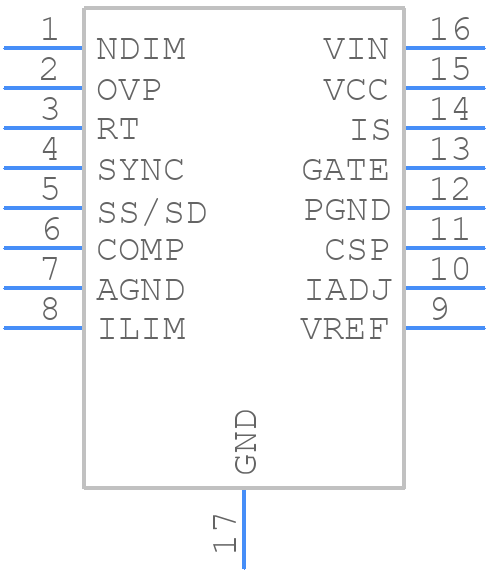

TPS92690PWPR/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS92690PWPR/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0016A PowerPAD HTSSOP - 1.2 mm max height
click to zoom
3D Models
TPS92690PWPR/NOPB - Texas Instruments - 3D model - Small Outline Packages - PWP0016A PowerPAD HTSSOP - 1.2 mm max height
click to zoom

TPS92690PWPR/NOPB Details

  • Manufacturer Part Number:

    TPS92690PWPR/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Segments:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Max:

    75 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    14 V

  • Supply Voltage1-Max:

    75 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    14 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPS92690PWPR/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS92690PWPR/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should have a low ESR and be rated for the input voltage. A ceramic capacitor with an X7R or X5R dielectric is recommended. The output capacitor should have a low ESR and be rated for the output voltage. A ceramic capacitor with an X7R or X5R dielectric is recommended. The capacitance value should be chosen based on the output current and ripple requirements.
  • The maximum ambient temperature range for the TPS92690PWPR/NOPB is -40°C to 125°C. However, the device can operate up to 150°C with derating.
  • To ensure stability, the TPS92690PWPR/NOPB requires a minimum output capacitance of 10uF. The output capacitor should be placed close to the device, and the traces between the device and the capacitor should be minimized. Additionally, the input voltage should be stable and free of noise.
  • Yes, the TPS92690PWPR/NOPB is suitable for high-reliability applications. It is built with a robust design and has undergone rigorous testing to ensure its reliability. However, it is recommended to follow proper design and manufacturing guidelines to ensure the reliability of the final product.
